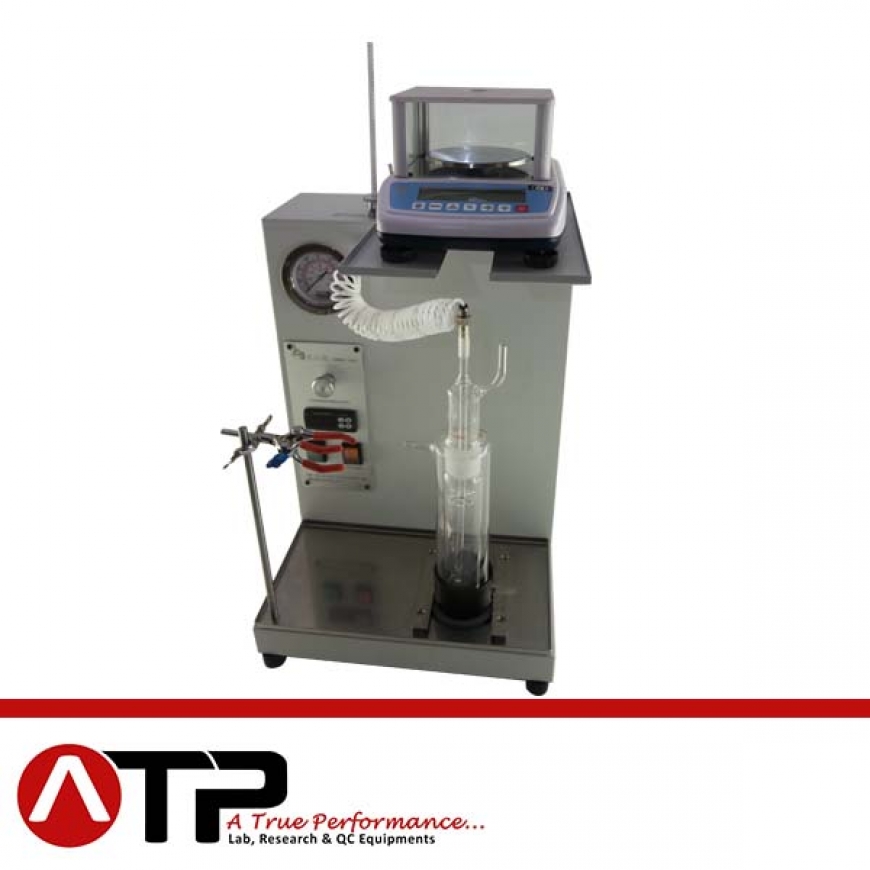

Air Release Apparatus

Determination of ability of turbine, hydraulic, and gear oils to separate entrained air.

Consisting of: structure made in plate painted with epoxidy products with upper base for density balance (optional), air pump with heating system controlled by PID digital thermoregulator and PT100 probe, reducer pressure, manometer, hole for thermometer (optional), test vessel with jacketed sample tube for connection to circulating bath (optional). Not included: oven, density balance with platinum wire and sinker, circulating bath and thermometer

– Dimensions: 400x350x570 mm
– Weight: 25 Kg
– Temperature: from ambient to 80°C (176°F)
– Stability: ±0.1°
– Power supply: 230V ±10% 50/60Hz
– Power: 500W
