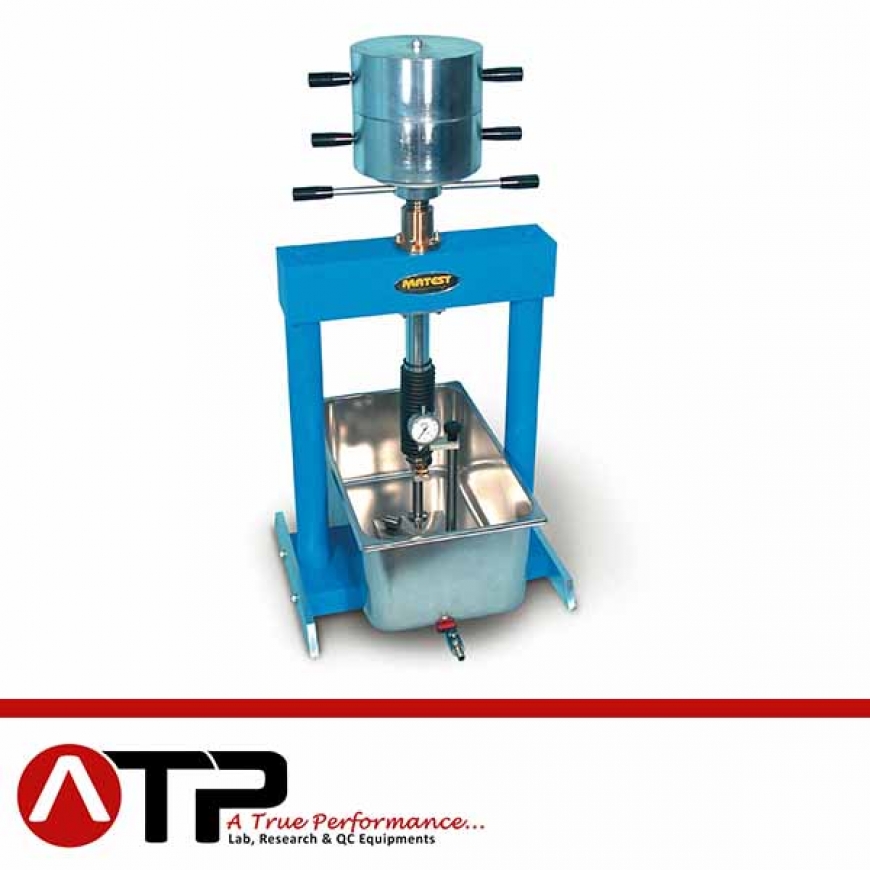

Asphalt-Indentation-Penetrometer

Comprising:
– Rugged basic frame where the screw penetration load device is fixed.
– Two interchangeable penetration pistons having 1 and 5 cm 2 surface.
– Two metallic discs having total weight of 500 N ( 51 kg) that are positioned on the load device.
– Dial gauge 30 mm, sens. 0,01 mm to measure the penetration.
– Stainless steel water bath complete with water discharge cock.

Heater, cube mould, test mould, “are not included” and have to be ordered separately (see accessories).

Dimensions: 530 x 600 xh 820 mm
Weight: 160 kg
