| Model |
P810 , P810 Pro , P850 , P850 Pro |
|---|

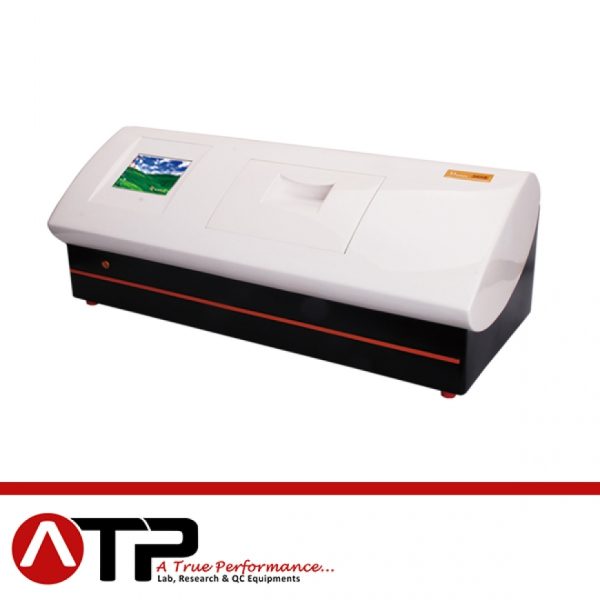

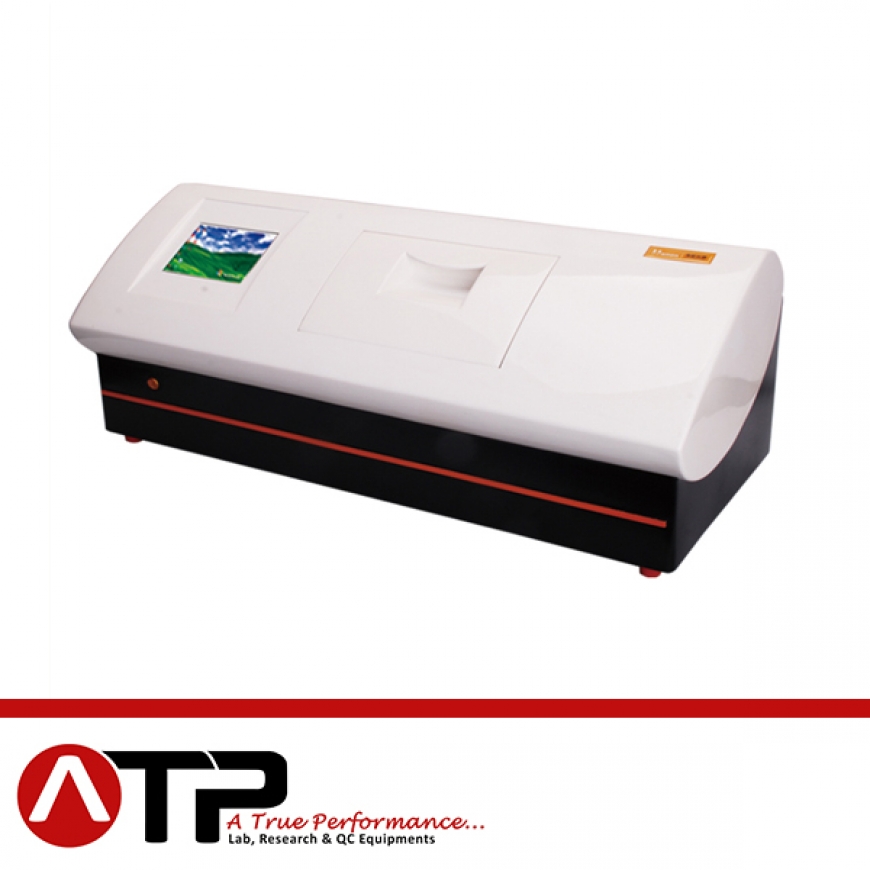

Auto Digital Polarimeter
By detecting the optical rotation, the density, content and purity of substances etc. can be analyzed and determined. It’s widely used in medicine, petroleum, food, chemicals, flavors, spices, sugar marking, other industries and universities and research institutes.
● LED Ultra long life light source.
● Automatic temperature control system.
● Automatic calibration.
- ● Automatic temperature control system.
● Automatic calibration.
● Large color touch screen display and innovative WINDOWS software interface give extremely
● convenient device operation and data acquisition.
● High brightness LED lights with service life exceeding 100000 hours.
● A variety of measurement modes are optional, without using complicated manual calculation.
● Extremely large storage capacity can store up to 1000 groups of data information
automatically.
|
P810 |
P810 Pro | P850 | P850 Pro | |
|
Measuring range |
±89.99°Arc;±259°Z |
|||
|
Measuring Model |
Optical Rotation;Specific Rotation;Concentration;SUgar Degree |
|||
|
Min.reading |
0.001°(optical rotation) |
|||
|
Accuracy |
±0.01º (-45º≤ optical rotation ≤ +45º) ±0.02º ( optical rotation＜﹣45º or optical rotation＞﹢45º) |
|||
|
Repeatability (standard deviation) |
0.002°(optical rotation) |
|||
|
min.transmittance |
1% |
|||
|
Wavelength/b> |
589.3nm (sodium D spectrum) |
|||
|
Sample Cell |
Upto 200mm |
|||
|
Temperature Control |
No |
Peltier |
||
|
Temperature Control Range/b> |
– |
15℃~30℃ |
15℃~50℃ |
|
|
Temperature Control Accuracy |
– |
0.3℃ |
||
|
Communication Port |
USB;RS232 |
USB*3;RS232;WI-FI |
USB*3;RS232 |
USB*3;RS232;WI-FI |
|
Data Storable |
1000 |
8G |
1000 |
8G |
|
21CFR Part 11 |
No |
Yes |
No |
Yes |
|
Display |
5.6inch |
8inch |
5.6inch |
8inch |
|
Atlas Duraltion |
No |
4hours |
No |
4hours |
|
Power |
220V AC (±10%)50Hz |
|||
|
Calibration System |
Option |
|||
