Automated foaming test apparatus

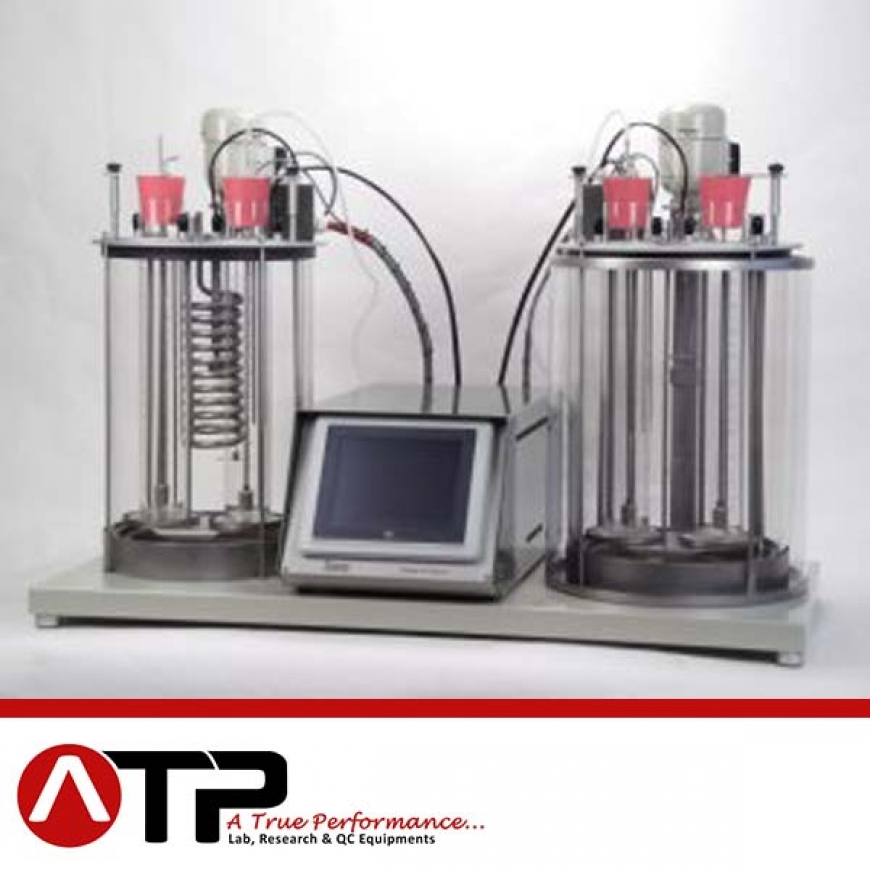

The apparatus consists of a frame supporting two Pyrex jars (one for 24 and one for 93.5°C) and a control box with all the electronics. The equipment permits to perform the analysis automatically: it’s enough to pour the sample in the cylinder and to insert the cylinder in the jar. By pressing a button on the 8.4” touch screen display, the test sequence will be started: after a selectable waiting time, the prescribed 470 ml of air is blown into the sample in 5 minutes: an audible alarm alerts the user 30 sec. prior to the end of the blowing time. The apparatus permits also to record test data, diagnose and calibrate temperature and flow sensors.

• Powder coated steel frame supporting two Pyrex jars, one for tests at 24 and one for tests at 93.5°C.
• Aluminium covers, each with two holes for the graduate test cylinders: locking clamps to hold the cylinders in position and thermometer jacket for ASTM 12C thermometer on each cover.
• Electrical bath stirrer on the jar cover.
• Stainless steel heaters.
• Two stainless steel cooling coils in the 24°C jar: one permits to maintain 24°C in the jar by circulating tap water and one permits to cool down the air used in sequence II.
•
• Two or four electronic mass flow controllers with 0-200 ml/min scale and 0.1% F.S. precision.
• Electronic controller that permits to run the test completely automatically: selectable waiting, blowing and alarm time. The controller provides also to maintain the jars at the prescribed temperatures with 0.1°C accuracy. 8.4” touch screen display. Calibration, diagnostic and data storage routines. Temperature measuring elements: PT100 RTD.
• Operating range: from ambient to 100°C.
• One Ethernet, two USB and one serial port.
• Safety transparent shield surrounding 93.5°C bath.
• Safety devices against overheating and low level on both jars.
• Easy access control box: it can be removed in case of malfunctionment for easy transportation.
• English written user’s guide and installation instructions.
• For 220V / 50Hz connections. Power consumption 2500 W.
• Dimensions (l x w x h): mm 1050 x 460 x 720. Weight: kg 55 approx.
• CE marked.

AD0892-400  Apparatus with two flow controllers (for 2 simultaneous tests)
AD0892-410  Apparatus with four flow controllers (for 4 simultaneous tests)

ACCESSORIES
AD0892-A00  Wet test meter
AD0892-A01  Officially certified wet test meter
AD0892-A10  Air pump
AD0892-A03  Glass drying tower
CAL001  PT100 simulator
CAL003  Official Certificate for Pt100 simulator

CONSUMABLES
AD0892-C00  Graduate pyrex glass cylinder
AD0892-C01  Rubber stopper with air inlet and outlet
AD0892-C02  Norton certified spherical Alundum gas diffuser stone
AD0892-C03  Mott certified stainless steel cylindrical gas diffuser
TA012C-N00  ASTM 12C thermometer (-20°C/+102°C)
