Automatic Concrete Water Permeability Apparatus at 4cells

Automatic concrete water permeability apparatus at four cells
This fully automatic apparatus is designed to carry out water permeability tests on cubic concrete specimens max.150 mm side and cylinder specimens max.160 mm diameter. The specimens are submitted to hydrostatic stress for a pre-set period. The water permeated through the test specimen is directly collected and measured into a graduated cylinder.
It is therefore possible to determine the permeability coefficient in cm/sec.(Darcy coefficient)by the attached formula.

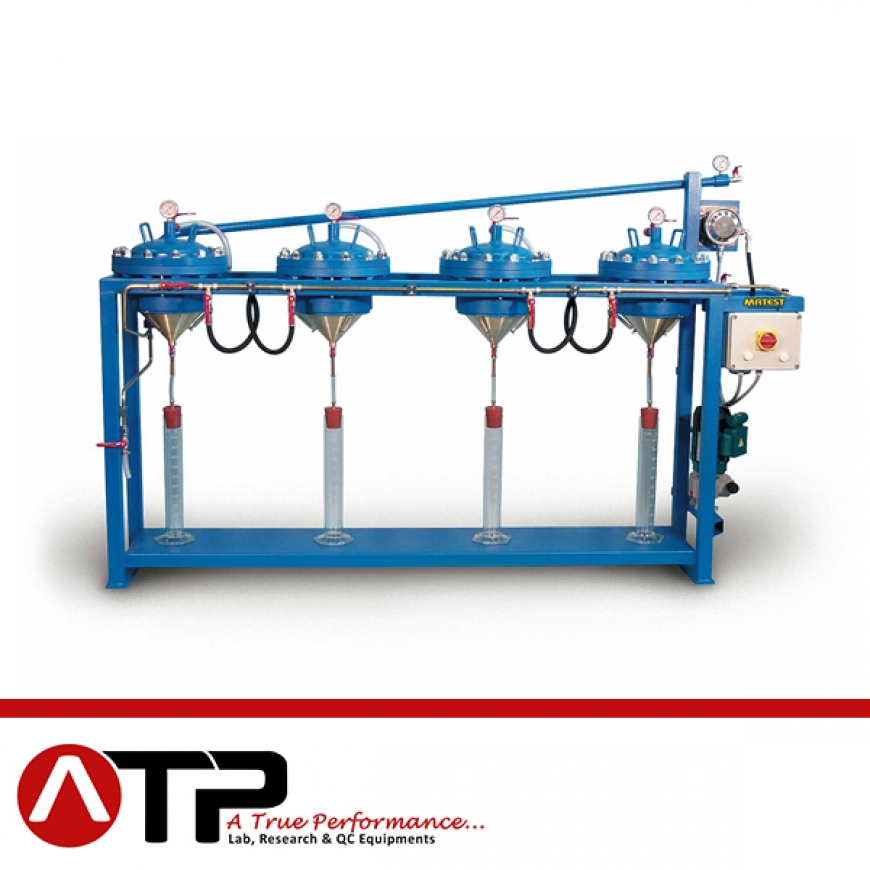

The equipment consists of a strong metallic frame holding four cells which are hot-galvanized for anti-corrosion protection.
Each cell includes a pressure control manometer.
A re-chargeable compensation plenum chamber is included as part of the test. The pressure is adjustable from 0 to 30 bar (0-20 bar for mod. C431),and it is supplied by an automatic pump of variable supply,to achieve the most suitable installation for the specimen under test. Water feed is direct from water inlet.
Seal pressure obtained through special and practical seal devices which maintain and simplify the use of the machine.
It is possible to use one or more cells together.
The specimen ’s sealing system is achieved through a practical and speedy, user-friendly device.
Supplied complete with four cells,four graduated cylinders,epoxy resin and accessories.
The “sealing devices are not included” in the standard package and must be ordered separately.

Power supply: 220-240 V 1 ph 50 Hz
Dimensions: 2500x500x1300 mm
Weight: 240 Kg
