| Model |
K1100F |
|---|

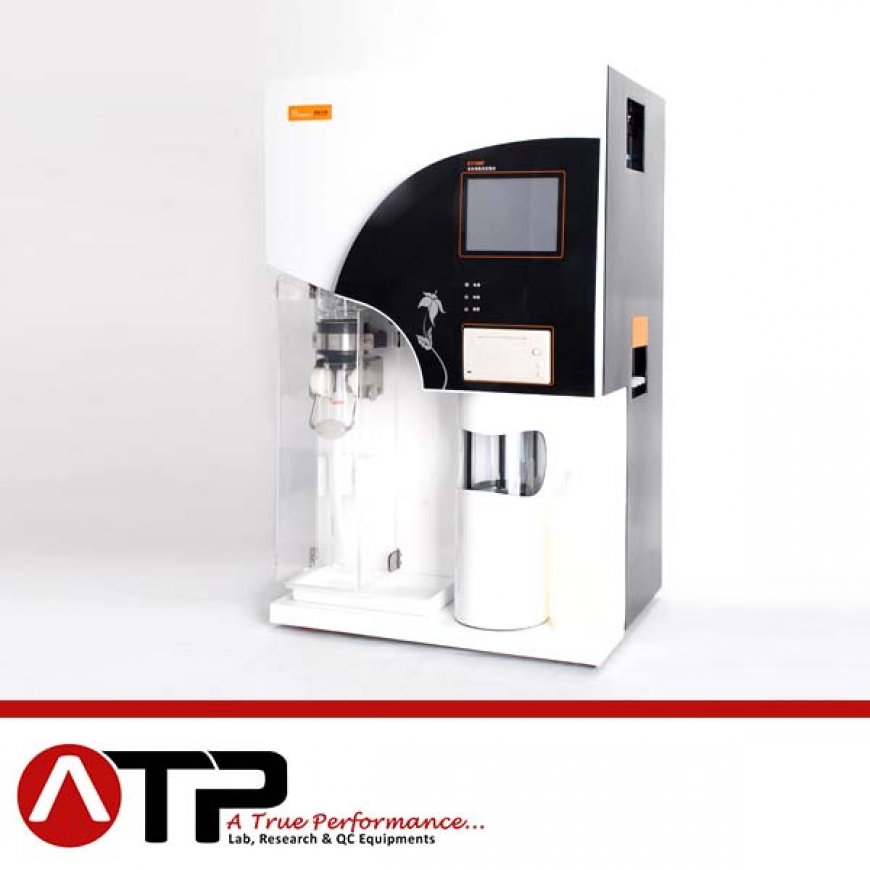

Automatic Kjeldahl Analyzer
1.High accuracy dozing and working: adopt 4 KNF pumps work for dozing, measurement liquid volume.
2. Complete compatible design: Using 300mL tubes(φ42mm), compatible with con-generic products perfectly
3. Easy Maintenance: Pre-install full functions of cleaning, include Digestion tube cleaning, Receiving cup cleaning, Alkali pipeline cleaning, Boric acid pipeline cleaning, Acid washing, Steam bottle evacuation. Support customer make the routine maintenance easily.
|
Measuring range |
0.1mg ～240mg N |
|
Analysis time |
5～10min/sample |
|
Reproducibility |
Average value relative error ±0.5% |
|
Recovery |
≧99.5% |
|
Burette volume |
1.0μL/step |
|
Sample capacity |
solid≦5g/sample, liquid≦20mL/sample |
|
Water consumption in the distillation process |
1.5L/min |
|
Data storage capacity |
1800 groups |
|
Power supply |
220VAC±10%, 50Hz |
|
Power |
2Kw |
|
Net weight |
38Kg |
|
Dimensions |
455mm×391mm×730mm |
