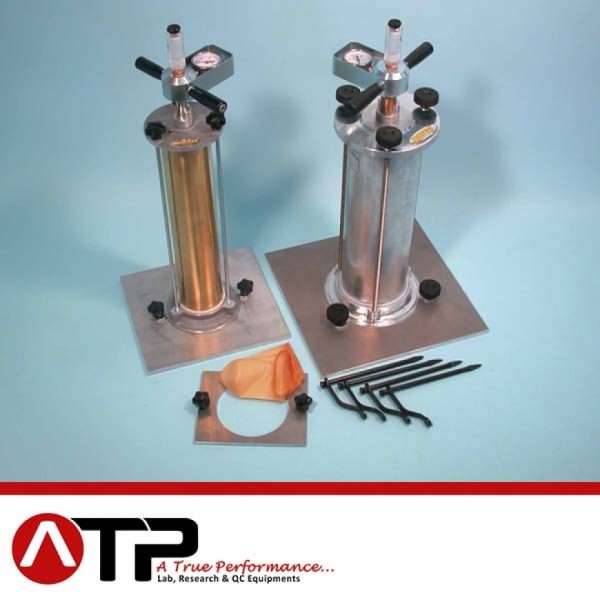

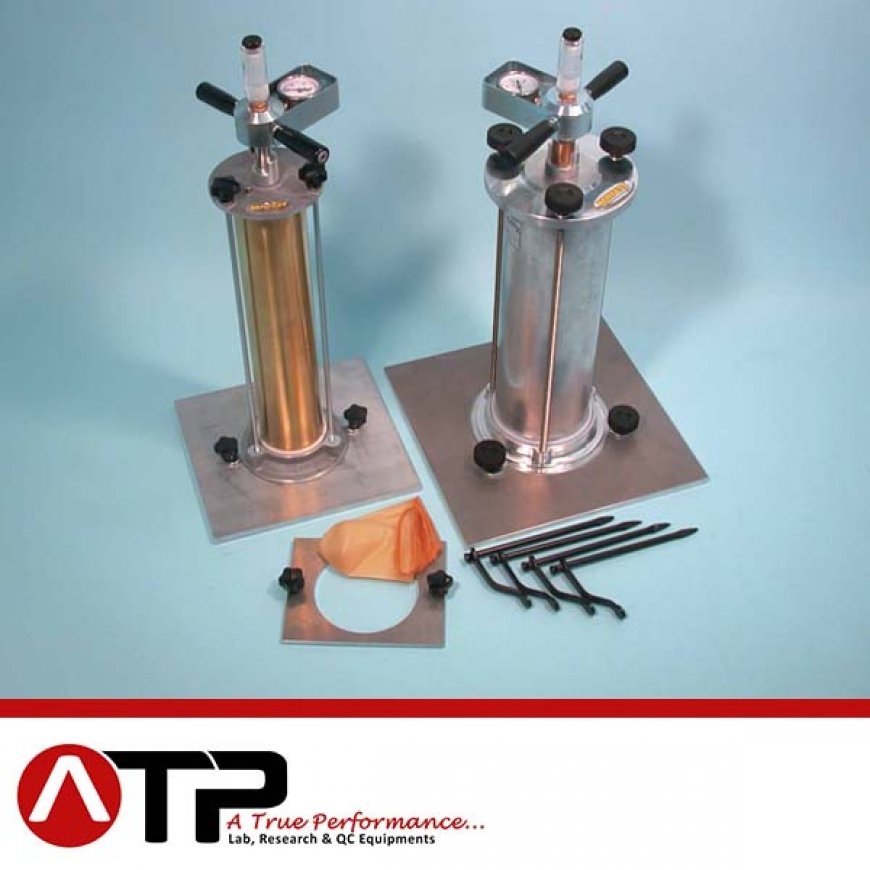

Balloon Density App 3000ml Capacity

Used to determine the in-situ density of fine graded compacted or bonded soil, this unit has the same test system of mod.S230,but with a capacity of 3000 ml as requested by French Specification.

A hand-driven piston forces the water into the rubber membrane.
A dial gauge measures the water pressure so to execute all the test at the same pressure.
An index engraved on the stem of the piston measures the volume of water filling the hole.
The unit is supplied complete with 6 reinforced rubber membranes, 4 locking clamps,base plate,accessories.

Dimensions:360x360x700 mm
Weight:10 Kg
