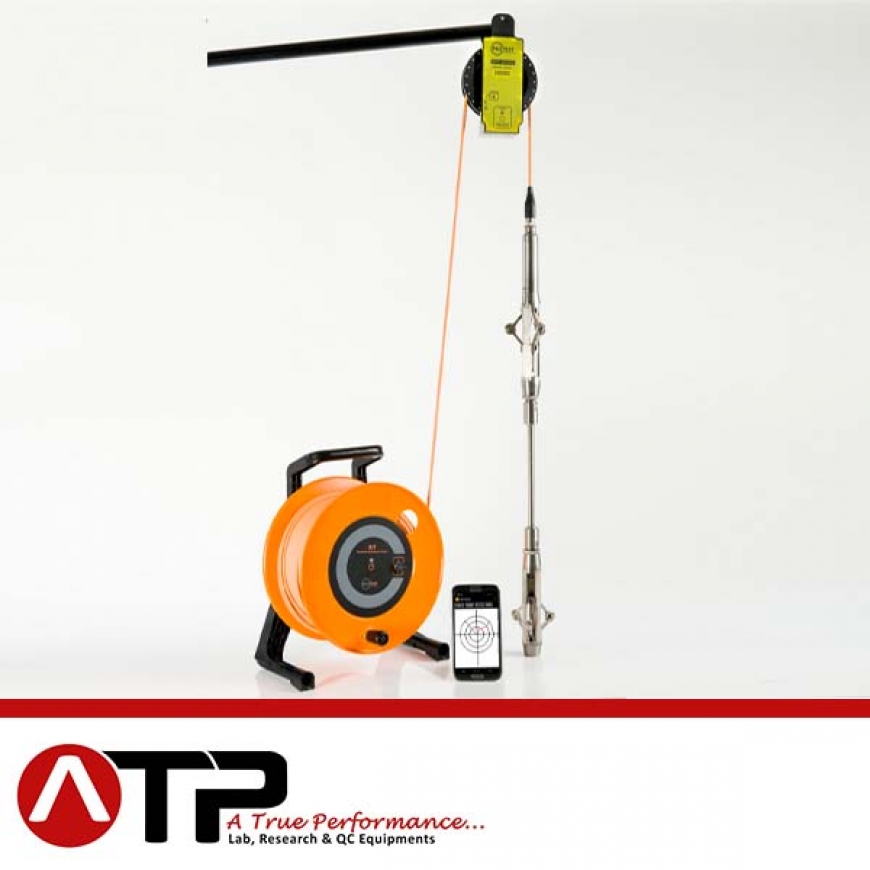

Borehole Inclination Tester

BIT measures the verticality of a borehole AND of existing piles

Borehole

BIT uses the auger/bucket itself as the centralizer. Eliminating the need for a heavy-to-move system.
The BIT enables fast and accurate determination of inclination in both dry and wet boreholes.
Large boreholes and diaphragm-walls may be quickly tested several times during drilling to enable real-time corrective action.

Existing piles:

A special centralizer is attached to the BIT sensor and lowered into a standard access tube (No need for an expensive inclinometer tube). The BIT sensor includes a gyro which constantly measures and compensates the rotation of the sensor in the tube.

Background

All piling specifications prescribe the allowable deviation of the pile axis from the vertical.

• FHWA rules, for instance, limit the pile inclination to 20 mm/m, or 2%.
• The ICE (UK) specifications allow a deviation of not more than 1:75 or 1.33%.

Similarly, these documents also set down the allowable deviation of raked piles.

In diaphragm and secant walls, the specification is typically even more restrictive.
