| Model |
S210 KIT |
|---|---|
| Standard |
AASHTO T193, NF P94-078, CNR UNI 10009, BS 1377:4, ASTM D1883 |

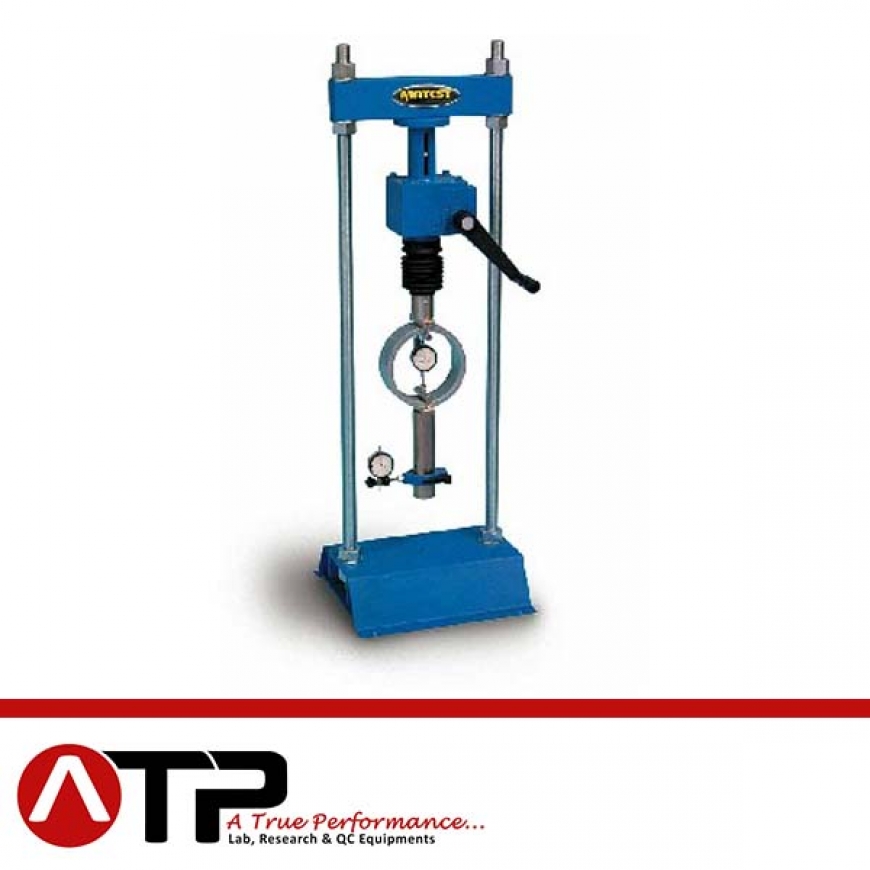

CBR MACHINE, HAND OPERATED, FIELD MODEL
CBR loading machine, hand operated, field model
The load is applied through a mechanical jack with handwheel. The upper beam can be adjusted in height.
The S210KIT machine comprises:
S221 Conversion frame
S221-01 Mechanical jack 50 kN capacity
S370-10 Load ring 50 kN capacity
S212-01 CBR penetration piston
S376 Dial gauge 10 x 0,01 mm
S212-03 Dial gauge holder
Dimensions: 420x370x1180 mm
Weight: 65 kg approx.
NOTE:
This machine includes some common component (like for ex. the mechanical jack mod. S221-01). It is therefore possible to combine these components for different machines, with some economical advantage.
