| Model |
04.010.400 , 04.010.600 |
|---|---|
| Standard |
ASTM C109, ASTM C348, ASTM C349, EN 196-1, EN ISO 679, ISIRI 393, ISIRI 8193 |

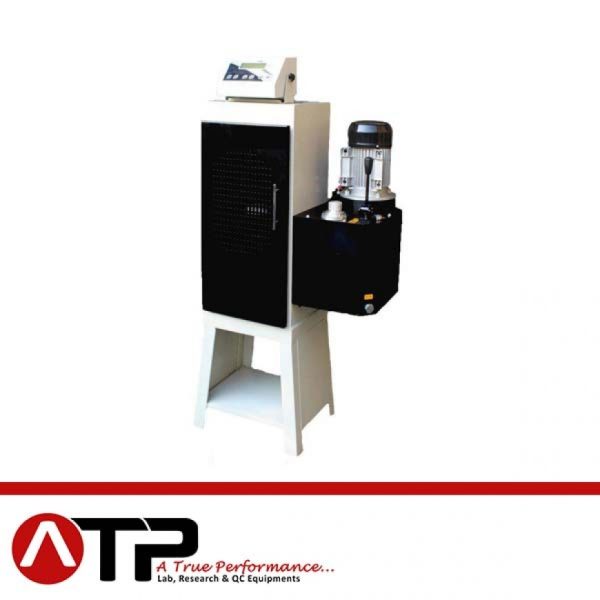

Cement Compression Flexural Machine (Digital )
Cement Compression Flexural Machine (Digital )
Compression tests on portions of prism and Flexural tests on cement prisms
included hydraulic system, software, digital unit control, Overload program, Hardened loading plates 60 HRC
|
Model |
04.010.400 |
04.010.600 |
|
Capacity |
400 KN |
600 KN |
|
Accuracy |
500 N |
|
|
Max. Vertical Daylight |
250 mm |
|
|
Max. Ram Travel |
40 mm |
|
|
Unit |
Kgf |
|
|
Tank Volume |
18 L |
|
|
Compression Plates dia. |
165 mm |
|
|
Communication |
Port-RS232 |
|
|
Power Supply |
750W, 220V, 50Hz, 1ph |
|
|
Dimension |
600×360×1260mm |
|
|
Weight |
270 Kg |
290 Kg |
