| Model |
04.020.400 , 04.020.600 |
|---|---|
| Standard |
ASTM C109, ASTM C348, ASTM C349, EN 196-1, EN ISO 679, ISIRI 393, ISIRI 8193 |

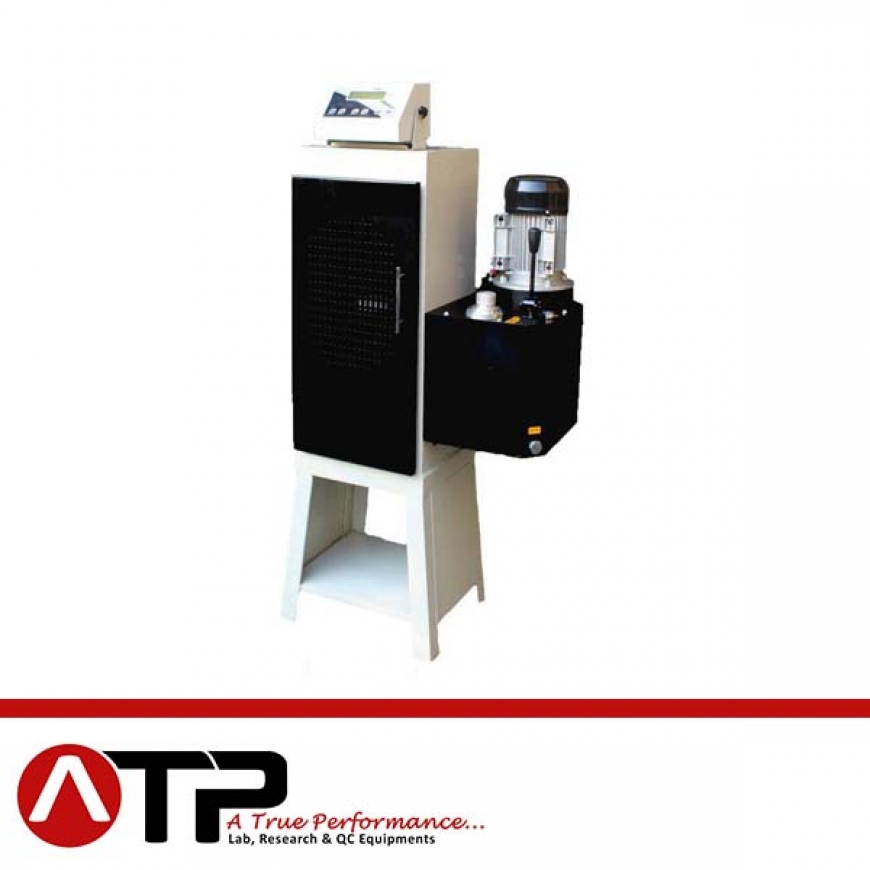

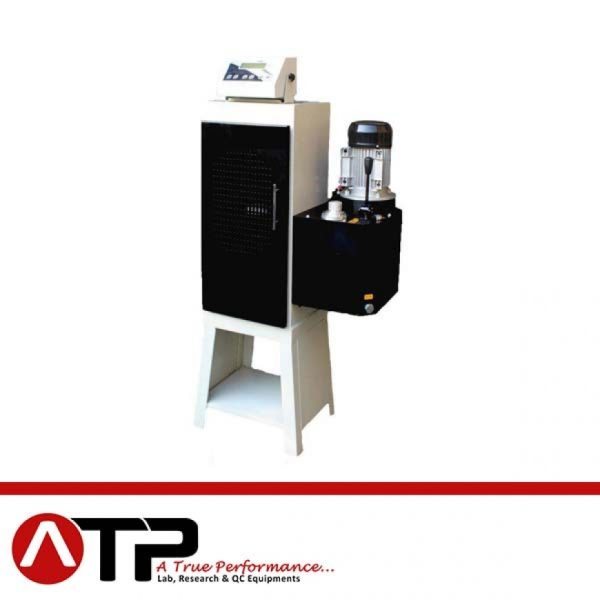

Cement Compression Flexural Machine (Semi-Automatic)
Cement Compression Flexural Machine (Semi-Automatic)
Compression tests on portions of prism and Flexural tests on cement prisms
included hydraulic system, software, digital unit control, LVDT for investigation of samples strain, Overload program, Hardened loading plates 60 HRC
|
Model |
04.020.400 |
04.020.600 |
|
Capacity |
400 KN |
600 KN |
|
Accuracy |
500 N |
|
|
Max. Vertical Daylight |
250 mm |
|
|
Max. Ram Travel |
40 mm |
|
|
Unit |
Kgf |
|
|
Tank Volume |
18 L |
|
|
Compression Plates dia. |
165 mm |
|
|
Communication |
Port-RS232 |
|
|
Power Supply |
750W, 220V, 50Hz, 1ph |
|
|
Dimension |
600×360×1260mm |
|
|
Weight |
280 Kg |
300 Kg |
