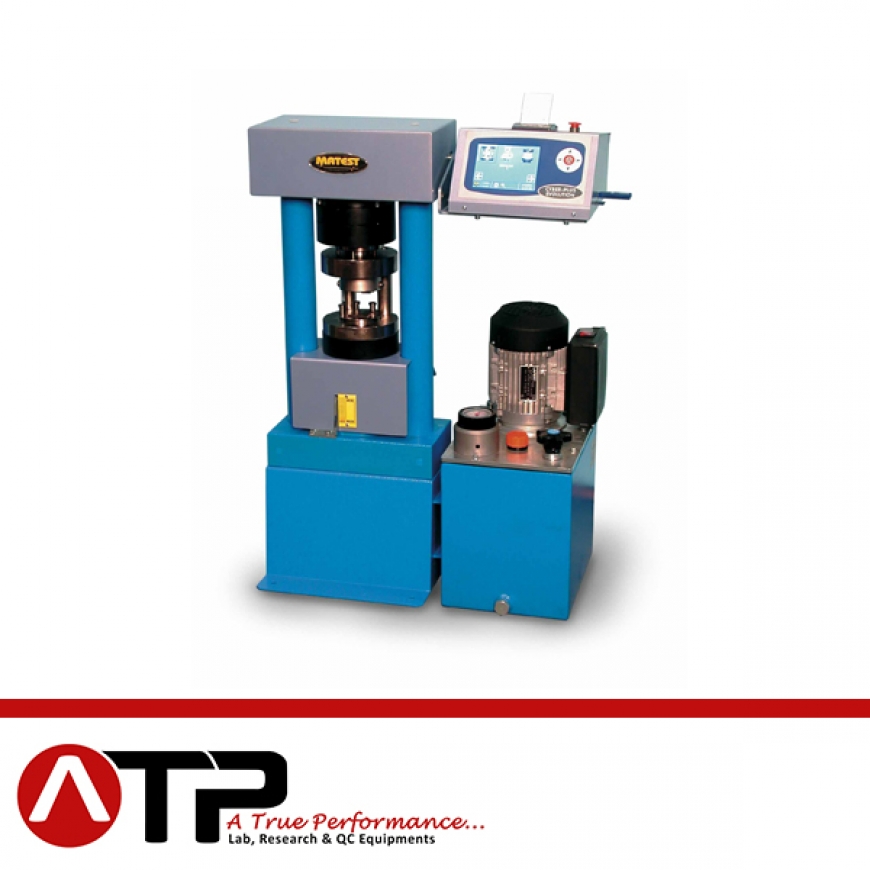

Cement Compression Machine 500kn,Cyber Plus Evolution

Compression machine 500 kN with Cyber-Plus evolution control unit (semi-automatic model).

Designed to perform compression tests on portions of prism 40,1x40x160 mm, cubes side 40, 50, 70, 100 mm and 2”; cores with max. height of 180 mm, by using the suitable compression devices described in next pages (accessories mod. E170 – E171-01).

– Two columns high stiffness frame.
– Max. vertical daylight between platens: 185 mm
– Platens diameter: 153 mm
– Ram travel: 45 mm approx.
– Accuracy: Grade 1 starting from 1/10 of the scale
– Supplied complete with lower compression platen and coupling piece to easily fix the compression device.
– Power supply: 230V 1ph 50Hz 750W
– Weight: 300 – 330 kg
