| Model |
E159N |
|---|---|
| Standard |
EN 196-1, EN ISO679, ASTM C109- C349, NF P18-411, UNE 80101, DIN 1164, BS 3892 |

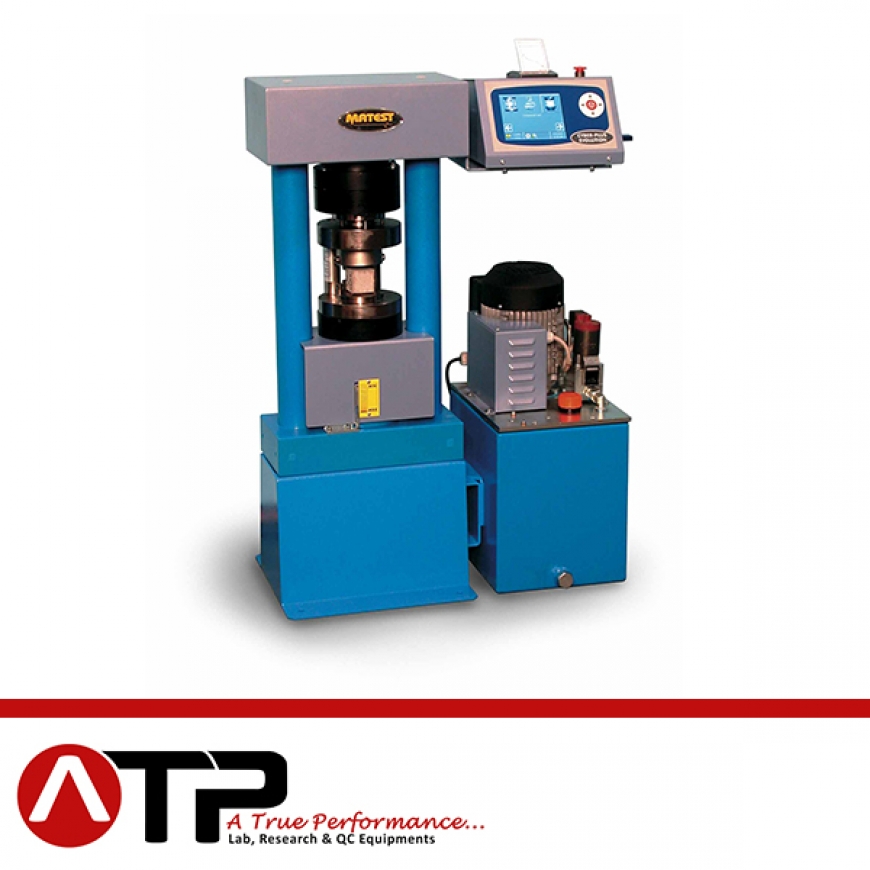

Cement Compression Machine 500kn,Cyber Plus Evolution
Compression machine 500 kN with Cyber-Plus evolution control unit (semi-automatic model).
Designed to perform compression tests on portions of prism 40,1x40x160 mm, cubes side 40, 50, 70, 100 mm and 2”; cores with max. height of 180 mm, by using the suitable compression devices described in next pages (accessories mod. E170 – E171-01).
– Two columns high stiffness frame.
– Max. vertical daylight between platens: 185 mm
– Platens diameter: 153 mm
– Ram travel: 45 mm approx.
– Accuracy: Grade 1 starting from 1/10 of the scale
– Supplied complete with lower compression pl
