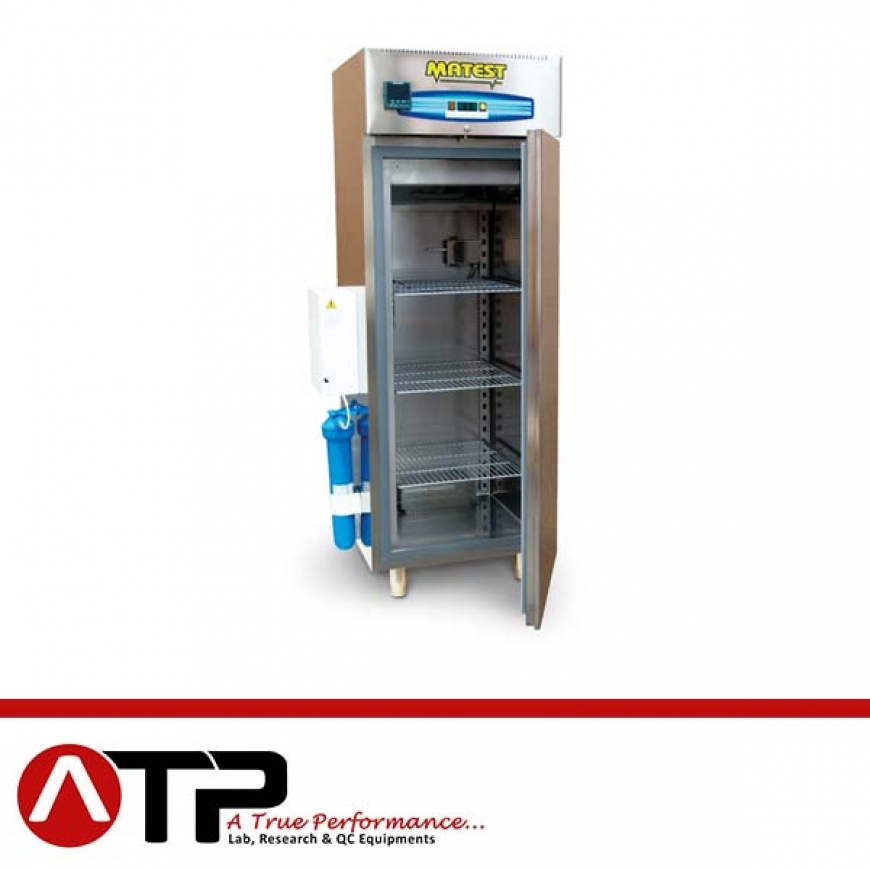

Climatic Controlled Cabinet 530 Liters

Temperature: -25 to +70°C, stability 0.1°C
– Humidity: 10 to 90%, accuracy ± 1%
  (within temperature: +10 to +70°C)

Internal capacity: 530 litres.

Designed for all research and control laboratories to perform: cold and/or hot temperature measurement at controlled humidity conditions, any kind of freezing/thawing tests and accelerated curing tests. Used to cure concrete (EN 12390-2) and cement specimens (EN 196-1) and analyze the behaviour to freezing and thawing of aggregates (EN 1367-1) and concrete (EN 12390-9). Internal and external frame is made of stainless steel AISI 304.Polyurethane insulation, 75 mm thick. Internal ventilation.

Reversible doors with autoclosing hinges and opening lock beyond 90°, replaceable magnetic gaskets, rounded corners.

Shelves can be taken off and adjustable in height; adjustable feet.
Temperature sensor can be placed at every point of the climatic cabinet; and within the specimen.
The cabinet is supplied with a “decalcification filter”; it works with demineralized or softened waters, or aqueduct waters with CaCO3 hardness from 0 to 400 ppm, assuring an excellent functioning along the time. Complete with microprocessor one cycle programmer and 20 temperature / humidity segments. Audiovisual alarm of minimum and maximum temperature (audio signal can be switched off). Password to access the cabinet commands.
Security device Class 3.1 (DIN 12880) with automatic activation of two further security thermoregulators.
Supplied complete with 3 adjustable shelves.

Inside dimensions: 600x670x1350 mm
Overall dimensions: 750x820x2070 mm
Power supply: 230V 1ph 50Hz 1800W
Weight approx.: 180 kg approx.
