Compacting Factor Apparatus

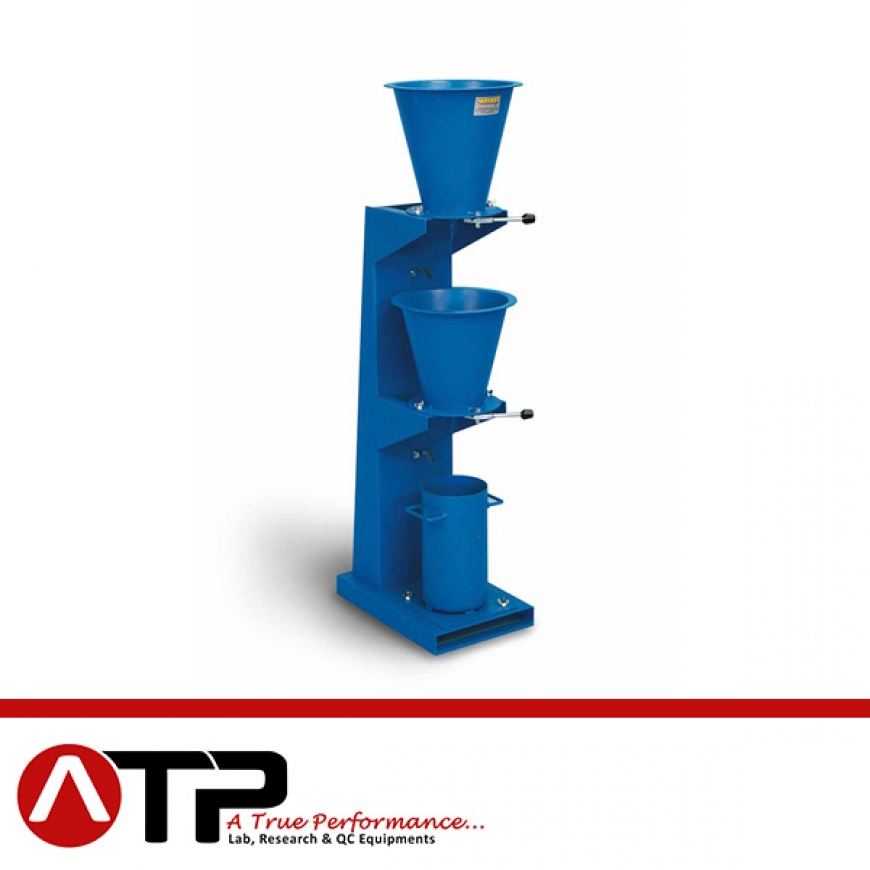

Designed to undertake a more precise and sensitive test procedure than the simple slump test. The apparatus consists of two conical hoppers mounted on a cylinder.
Each hopper has a hinged flange with quick release mechanism and everything is mounted on a rigid steel stand.
The compacting factor is the ratio between the weight of the partially compacted concrete and the weight of the fully compacted concrete.
Supplied complete with tamping rod dia. mm 16×600 long.

Dimensions: 500x400x1510 mm
Weight: 55 kg
