Compression-Testing-Machines-3000-kn

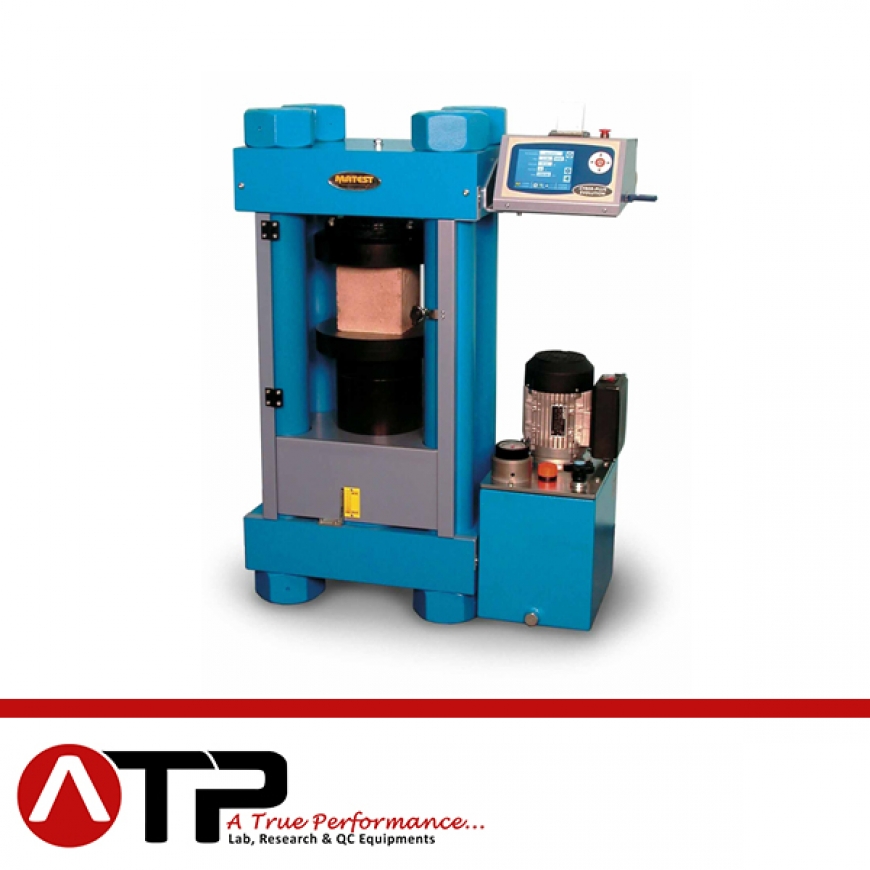

COMPRESSION TESTING MACHINES 3000 kN CAPACITY To test cubes up to 200 mm side and cylinders up to dia. 160×320 mm.

TECHNICAL SPECIFICATIONS:
– Max. vertical daylight: 336 mm
– Compression platens dia. 287 mm
– Gauges dia. 250 mm with specific resistance scales for cubes 150 mm and cylinders dia. 150 and 160 mm
– Gauges divisions: 3000 kN div. 10 kN 600 kN div. 2 kN
– Hydraulic device to stop the piston’s stroke at its max excursion to avoid pumping the piston out of the cylinder.
– Calibration accuracy: Grade 1.0
– Max. ram travel 55 mm approx.
– Power supply (motorized models): 230 V 1 ph 50 Hz 750 W
– Dimensions: 860x470x1450 mm
– Weight: 1050÷1120 Kg
