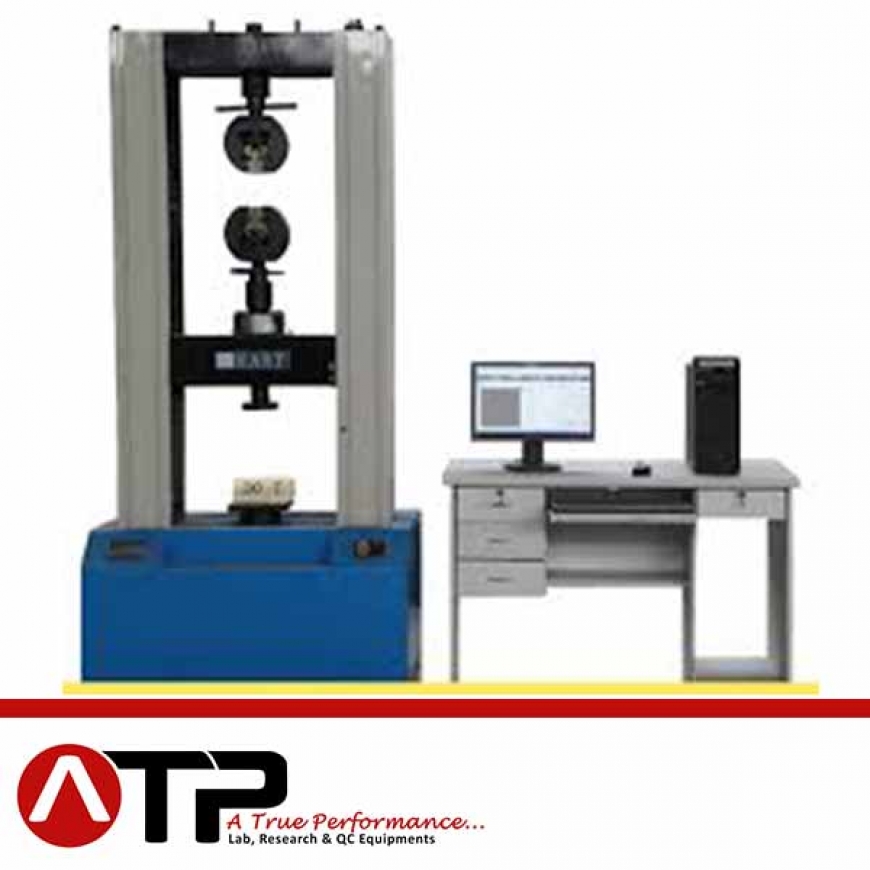

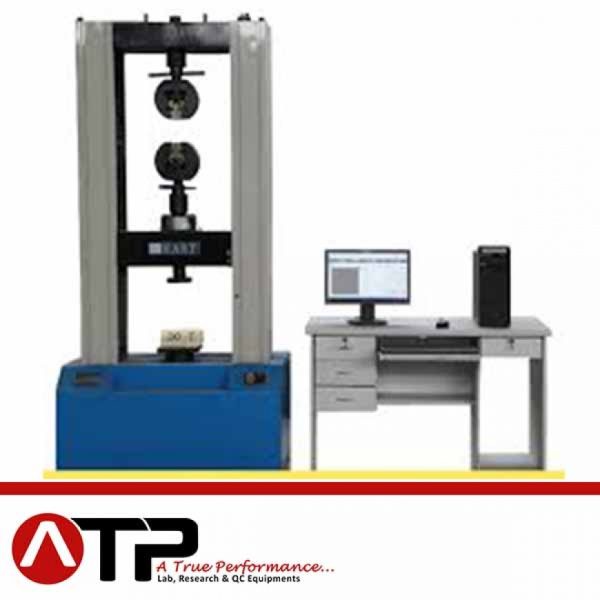

Computer Control Electronic Universal Testing Machine

Description

Feature: Complete computer controlled: the whole measuring and controlling system adopts specific PC control card used for testing machines, realizing the data zero and plus adjustment, which has very high reliability. Supporting multi-transducers. Realizing the database management of the test data which are stored according to the standard format; facilitating other software to analyze and transfer. Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad.

Specification

Control software has the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness.

Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result.

The user can self-define the output of the test report, which makes the report format have high flexibility.

Modularization design facilitated the software upgrading, function spreading as well as the second development.

Technical specification

WDW-2

1> max. test force       2KN

2> Measurement range of test force         0.4%-100%

3> Testing machine accuracy grade             1

4> Accuracy of test force                 ≤±1%

5> Crosshead displacement resolution           0.01mm

6> Adjust speed range:                   0.01-500mm/min

7> Test force                               700mm

8> Host type                          single-arm structure

9> Host dimension                     600mm x 420mm x 1750mm

10> Weight                                 200kg

11> Working environment               room temperature 45   humidity 20%-80%

Standard delivery

1> Test host             1

2> AC servo motor         1

3> Speed governor         1

4> Load cell               1

5> Precision ball screw       2

6> Deceleration system         1

7> Digital control system         1

8> Optical encoder             1

9> Computer                 1

10> Printer                 1

11> Windows system software       1

12> Accompany tools               1

13> Tensile accessory               1

14> Compression accessory         1

15> Bending accessory             1

16> Technical information           1
