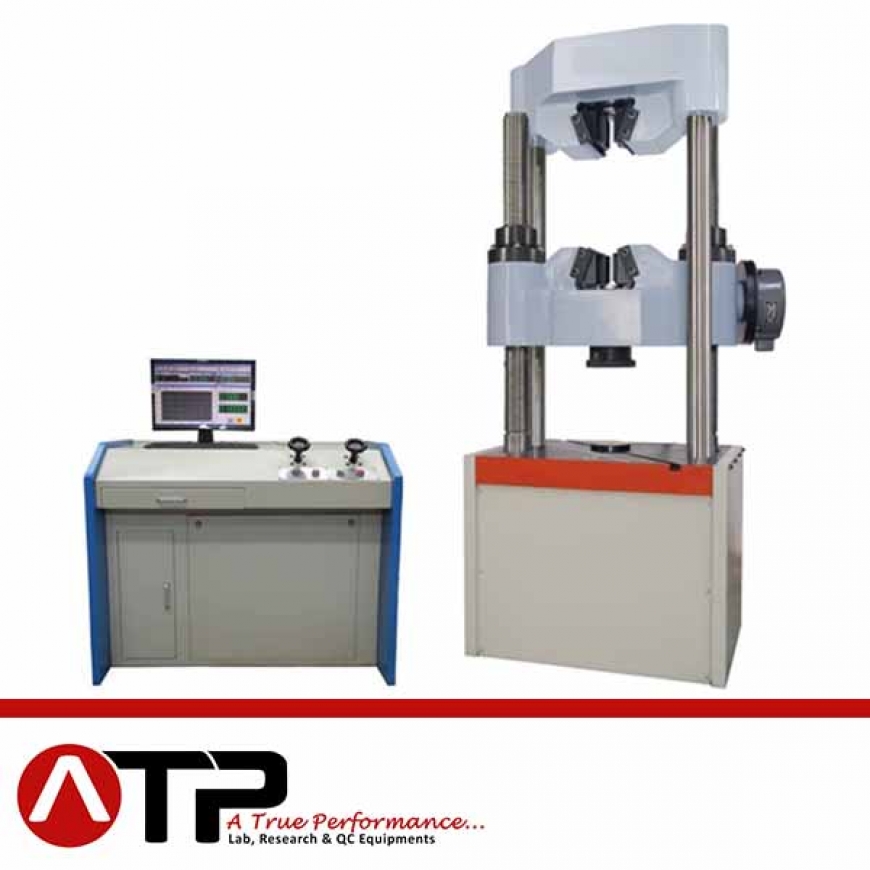

Computer control servo hydraulic universal testing machine
Description
1> Computer control servo UTM 2> Hydraulic UTM 3> Worm gear system 4> 300KN scientific equipment Jinan Chenda Testing Machine Manufacturing Co.,Ltd
Specification
300KN Computer control servo hydraulic universal testing machine+worm gear system
1> High rigidity host structure: transmission system and the positioning system was separated
2> Gap adjustment system: Insure the moving crosshead has a reasonable working position and stress state.
3> Worm gear system: smooth transmission and located accurately
4> Bi-metal nut reverse rotation: can eliminate the rotation torque effectively
5> Clearance type seal fuel tank: Unique technology of hydrostatic support the oil film without friction.
6> Hydraulic clamping: adjustment hydraulic clamping device
7> Control ways: manual and nonmanual control mode
Technical specification:
|
Mode |
WAW-300C |
||
|
Max. Load capacity |
300KN |
||
|
Load accuracy |
Within ±1% |
||
|
Test space |
Tensile |
600mm |
|
|
Compression |
550mm |
||
|
Piston stroke |
200mm |
||
|
Distance between columns |
450mm |
||
|
Tensile fixture |
Round specimen fixture |
Φ10-Φ20mm Φ20-Φ32mm |
|
|
Flat specimen fixture |
0-15mm |
||
|
The width of flat specimen |
70mm |
||
|
Flat size |
Φ160mm |
||
|
Bending adjust space |
400mm |
||
|
Dimension |
800*600*2100mm |
||
|
Power supply |
Three-phase 380V 50HZ (special requirement can be met) |
||
Standard delivery:
|
No. |
Name |
specification |
Quantity |
Remark |
|
1 |
Host |
1 |
||
|
2 |
Cabinet |
1 |
||
|
4 |
Controller |
1 |
||
|
5 |
Measurement and Control System |
1 |
||
|
6 |
Oil pressure transducer |
1 |
||
|
7 |
Optical encoder |
1 |
||
|
8 |
Computer |
1 |
||
|
9 |
Printer |
1 |
||
|
10 |
Round specimen specification mm |
Φ6~Φ13，Φ13~Φ26, Φ26~Φ40 |
1 |
Standard delivery is 3 sets tensile fixtures. The client’s can choice according to your requirement |
|
11 |
Flat specimen specification mm |
0-15,15-30 |
Each of the specification 1 |
|
|
12 |
Compression fixture mm |
1 |
