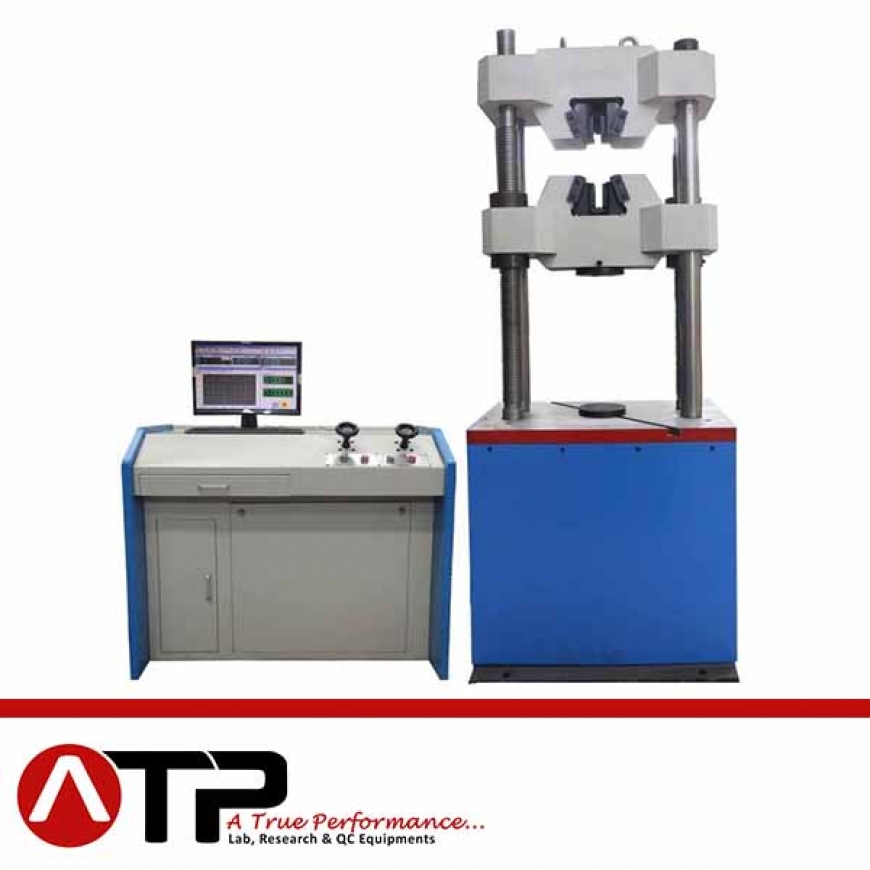

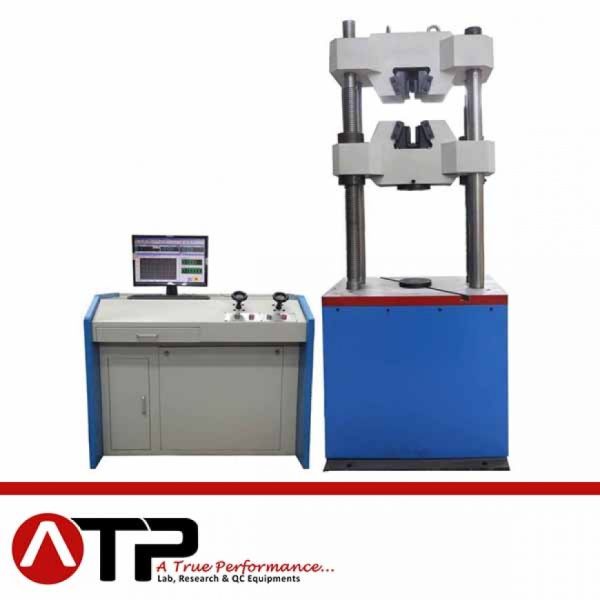

Computer Display Hydraulic Universal Testing Machine

Description

1> Computer display Hydraulic universal testing machine. 2> Test force for 100/300/600/1000 kN. 3> Computer display Manual control 4> Tensile testing machine

Specification

300KN Computer display hydraulic universal testing machine+measurement instrument+lab equipment+test equipment

Main Applications & Functions:

WEW-300B Series machine is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force. By using load transducer and photoelectric encoder, the computer is timely collecting the testing parameters like loading force, stroke, etc. this machine is adopting manual control mode and computer collecting and displaying methods to process the testing machine parameter. The software based on windows system is able to make automatic calculating of test result, i.e. tensile strength, up/low yield strength, non proportional stress point etc. report creation function makes it is very simple to make testing report in needed format. This machine is widely used in different areas and facilities.

Features
1> Using the oil pressure transducer to get the force

2> Full computer displayed of testing process

3> Manual loading speed will meet your appropriate testing speed.

4> Adopt manual/oil hydraulic automatic clamps which can be operated from separated control box.

5> Timely control software will provide accurate record of testing process

6> Report guide will create your testing report very simply

7> Overload protection will secure operators.

Technical specifications:

Standard delivery:

No.	Name	Specification	Quantity
1	Host		1
2	Cabinet
3	Controller		1
4	Measurement and Control System		1
5	Oil pressure transducer		1
6	Optical encoder		1
7	Computer		1
8	Printer		1
9	Round specimen specification mm	Φ10~Φ20 Φ20~Φ32	2
10	Flat specimen specification mm	0~15	1
11	Compression plate		1
12	Bending fixture		1
13	Accompany document		1
