| Model |
E 05 , E 101 ,E 102 , E 103 , E 104 , E 105 , E 106 , E 107 , E 108 , E 109 |
|---|

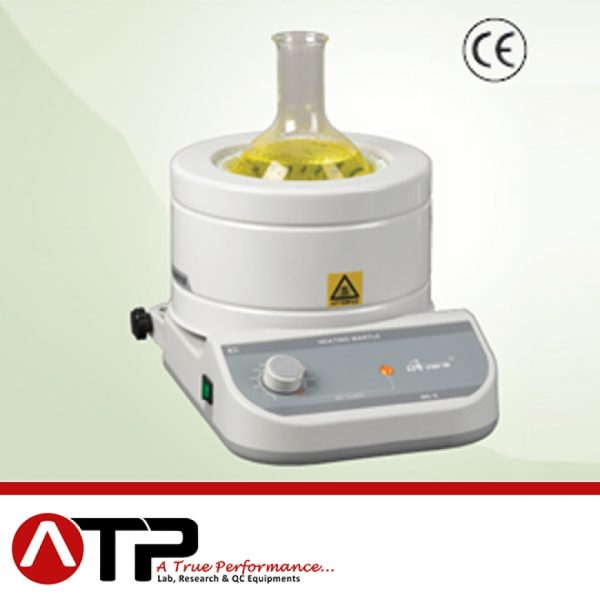

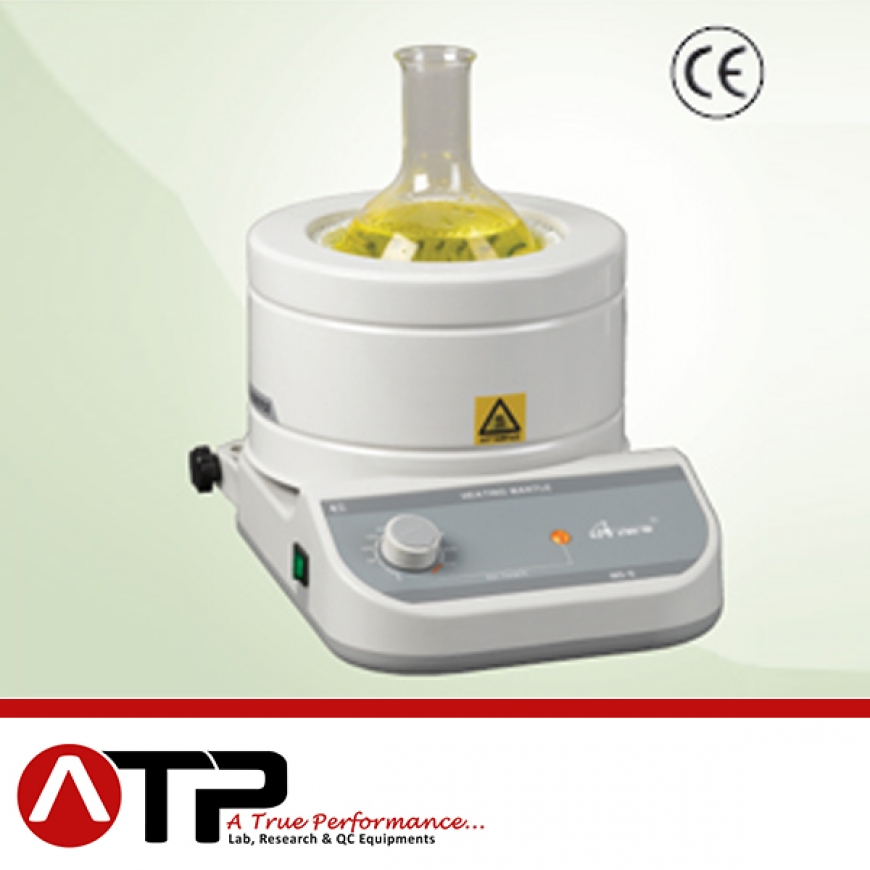

Controlled Mantles (Analog)
Heating mantles for round bottom flask
Max. temperature 450℃
Analog temperature controller
Ceramic fiber with strong thermal resistance
Support Rod Clamp : For 12.7mm dia. Support rods.(with100ml ~5000ml)
Support Rod : Stainless steel Ø12.7×400mm(Option)
Power Supply : 220V or 110V 50/60 Hz
|
Model |
Capacity |
Watts |
Dimensions |
Internal |
Weight (Kg) |
|
E 05 |
50ml |
60 |
162×256×134 |
45 |
1.2 |
|
E 101 |
100ml |
80 |
162×256×134 |
45 |
1.2 |
|
E 102 |
250ml |
150 |
162×256×147 |
60 |
1.3 |
|
E 103 |
500ml |
260 |
192×276×162 |
75 |
1.6 |
|
E 104 |
1000ml |
380 |
214×298×172 |
85 |
1.9 |
|
E 105 |
2000ml |
500 |
248×332×199 |
115 |
2.5 |
|
E 106 |
3000ml |
600 |
274×358×205 |
125 |
3.2 |
|
E 107 |
5000ml |
800 |
316×400×229 |
145 |
3.6 |
|
E 108 |
10000ml |
1300 |
395×265 |
8 |
|
|
E 109 |
20000ml |
2000 |
460×290 |
11.4 |
