Copper/Silver Corrosion Bath

Determination of the corrosiveness to copper of aviation gasoline, aviation turbine fuel, automotive gasoline, cleaners (Stoddard) solvent, kerosine, diesel fuel, distillate fuel oil, lubricating oil, and natural gasoline or other hydrocarbons having a vapor pressure no greater than 124 kPa (18 psi) at 37.8°C (100°F)

Establishment of requirements of automotive fuels for ground vehicles equipped with spark-ignition engines.

determination of the corrosiveness to silver by automotive spark-ignition engine fuel (for example, gasoline), as defined by Specification D4814 or similar specifications in other jurisdictions, having a vapor pressure no greater than 124 kPa (18 psi) at 37.8°C (100°F) by one of two procedures.
Determination of the corrosiveness to silver by automotive spark-ignition engine fuel, as defined by Specification D4814, or similar specifications in other jurisdictions, having a vapor pressure no greater than 124 kPa (18 psi) at 37.8°C (100°F), by one of two procedures. Procedure A involves the use of a pressure vessel, whereas Procedure B involves the use of a vented test tube.

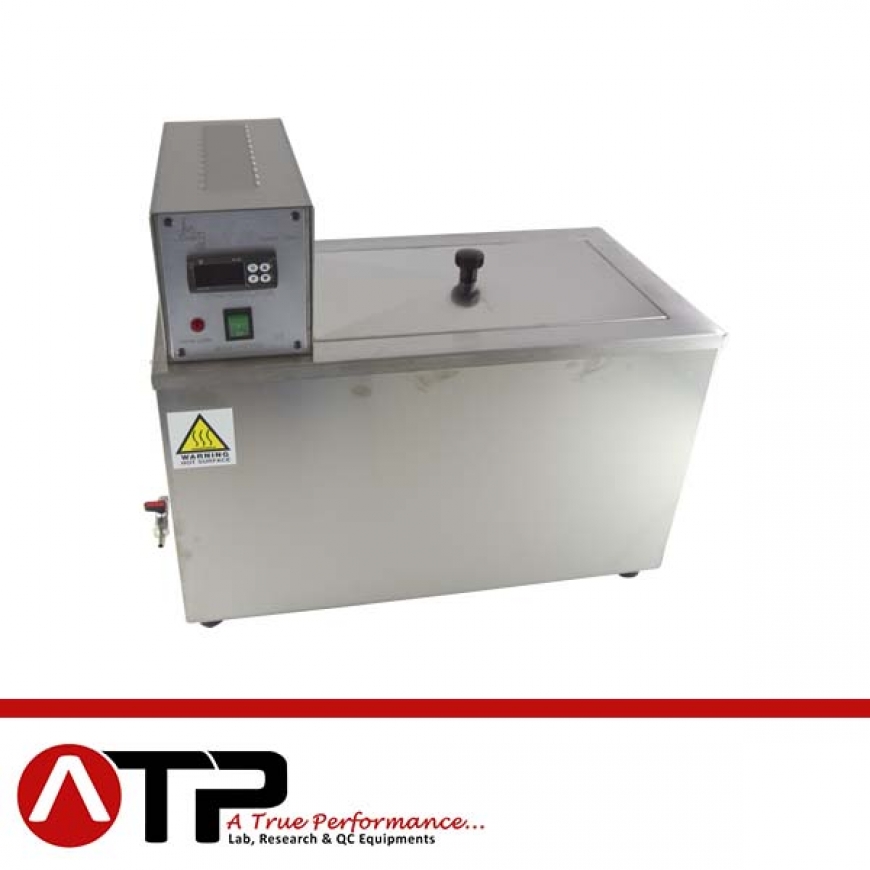

Fully made in stainless steel, this bath has a capacity of about 13 liters for 4 copper corrosion test vessel. The temperature control is a thermoregulator PID with PT100 probe class A and overtemperature alarm, stainless steel heater, cooling coil, motor stirrer, insulated double wall, safety internal level for low liquid with warning lamp. The bath includes a cover with 4 lids and hooks for suspending the corrorion test vessel.

– Temperature: from ambient to 150°C (302°F)
– Stability: ±0.1°
– Capacity: about 13 liters
– Power supply: 220V 50/60Hz
– Power: 1200W
– Dimensions: 27x37x46 cm
– Weight: 8 kg
