Copper Strip Corrosion

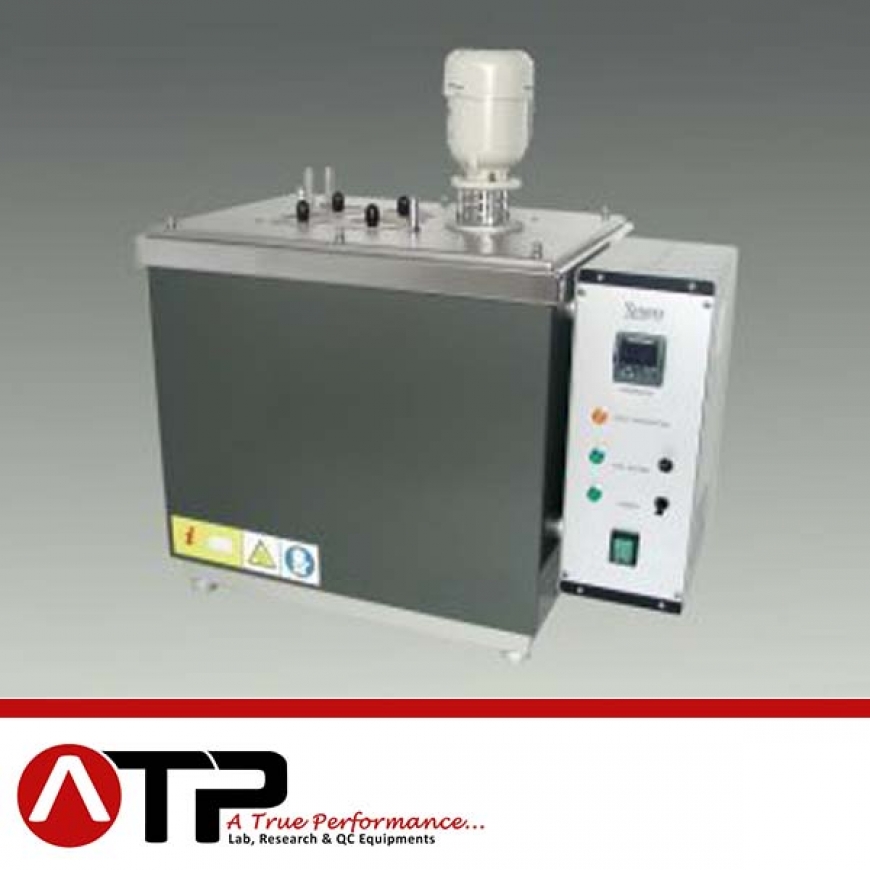

The apparatus, suitable for the execution of the test at 40, 50 and at 100°C, consists of a benchtop steel case containing a stainless steel bath with a four-hole cover to allow the introduction of the vessels or the test tubes and a control box containing all the electronics.

• Enamel finished steel case, benchtop model.
• Stainless steel bath equipped with a cover with holes for the insertion of the vessels or the test tubes; covers with hook for the vessels.
• Electric stirrer.
• Stainless steel auxiliary heater.
• Condensing bath cover that avoid steam leaks from the cover while the bath is used at 100°C.
• Control thermometer jacket on the bath cover.
• Microprocessor thermoregulator with PID action and built-in temperature display 0.1°C accuracy. Probe: PT100 RTD.
• Working range: from 30°C to 120°C. Regulation accuracy ± 0.1°C.
• Safety device against overheating and low-level.
• Easy access control box placed on the right side of the apparatus and containing all the electronics: anodized aluminium control panel with English written indications.
• English written user manual.
• For 220 V/50 Hz connections. Power consumption 2500 W.
• CE marked.
• Apparatus with support for multiple tubes also available.
• Dry baths also available: request related bulletin.

AD0130-100: Apparatus for four vessels with water bath. Dimensions (l x w x h): 640 x 400 x 600 mm. Weight: kg 40 approx.

AD0130-110: Apparatus for six vessels with water bath. Dimensions (l x w x h): 700 x 400 x 600 mm. Weight: kg 45 approx.

AD0130-120: Apparatus for eight vessels with water bath. Dimensions (l x w x h): 760 x 400 x 600 mm. Weight: kg 50 approx.

   AD0130-300: Apparatus for four vessels with aluminium block.

ACCESSORIES

AD0130-A00        Stainless steel corrosion test vessel

AD0130-A01        Test tube support (for 3 test tubes)

AD0130-A02        ASTM Copper Strip Corrosion Standards

AD0130-A03        Strip vise for one copper strip

AD0130-A04        Strip vise for four copper strips

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD0130-C00        Glass test tube Æ 26

AD0130-C01        O-Ring for vessel

AD0130-C02        Copper strip 75 x 12.5 x 3 mm

AD0130-C03        Silicon carbide paper, 240 grit (pack of 12 sheets)

AD0130-C04        Silicon carbide paper, 150 grit (pack of 12 sheets)

AD0130-C05        Silicon carbide grains (0.5 Kg pack)

AD0130-C06        Viewing test tube

   TA012C-N00         ASTM 12C thermometer (-20°C/+102°C)
