Corrosiveness and oxidation stability of light oils

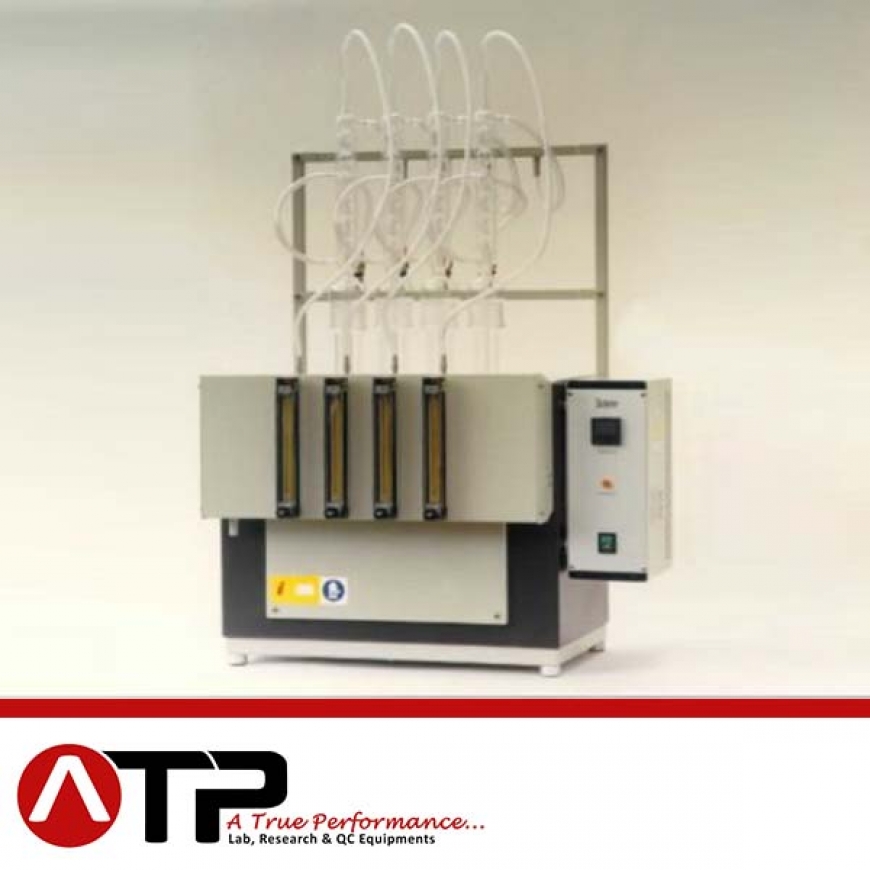

The apparatus consists of a benchtop steel case containing an aluminium thermostatic block with a series of holes for the introduction of the oxidation cells, a support for the flowmeters and a water dispenser for the condenser refrigeration.

• Enamel finished benchtop steel case.
• Aluminium block bath with wells for test tubes.
• Stainless steel electric heaters.
• Microprocessor thermoregulator with built-in temperature display, 0.1°C accuracy. Probe: PT100 RTD. Regulation accuracy ± 0.1°C. Working range: from ambient to 300 °C.
• Safety device against overheating.
• Easy access control box placed on the right side of the apparatus and containing all the electronics and electrical parts. Aluminium control panel with english written indications.
• Oxygen inlet manifold with high precision variable area flowmeters with calibration certificate. Individual needle valves for regulating oxygen flow at 5  ± 0.5 l/h
• Water inlet manifold with valve connections for the mushroom condensers.
• Water outlet manifold.
• English written user manual.
• For connection to 220V/50Hz. Power consumption 2000 W.
• CE marked.
• Four, six, eight and twelve-place units available.
• Version with mass flow controller and software also available.

F53084-100         Four-place unit. Dimensions (l x w x h): 640 x 430 x 1000 mm. Weight: 90 kg

F53084-110         Six-place unit. Dimensions (l x w x h): 760 x 430 x 1000 mm. Weight: 110 kg

F53084-120         Eight-place unit. Dimensions (l x w x h): 640 x 490 x 1000 mm. Weight: 130 kg

F53084-130         Twelve-place unit. Dimensions (l x w x h): 760 x 430 x 1000 mm. Weight: 160 kg

ACCESSORIES

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

F53084-C00        Test tube

F53084-C01        Allihn condenser

F53084-C02        Oxygen delivery tube

F53084-C03        Set of four copper plates

F53084-C04        Set of four mild carbon steel plates

F53084-C05        Set of four aluminium alloy plates

F53084-C06        Set of four magnesium alloy plates

F53084-C07        Set of four cadmium plated steel plates

F53084-C08        Set of four silver plates

F53084-C09        Set of four solid cadmium plates (non standard)

F53084-C10        Set of four titanium plates (non standard)

F53084-C11        Pack of 10 sheets of abrasive paper 100 grit

F53084-C12        Pack of 10 sheets of abrasive paper 150 grit

F53084-C13        Pack of 10 sheets of abrasive paper 240 grit

F53084-C14        Abrasive powder, 0.5 kg
