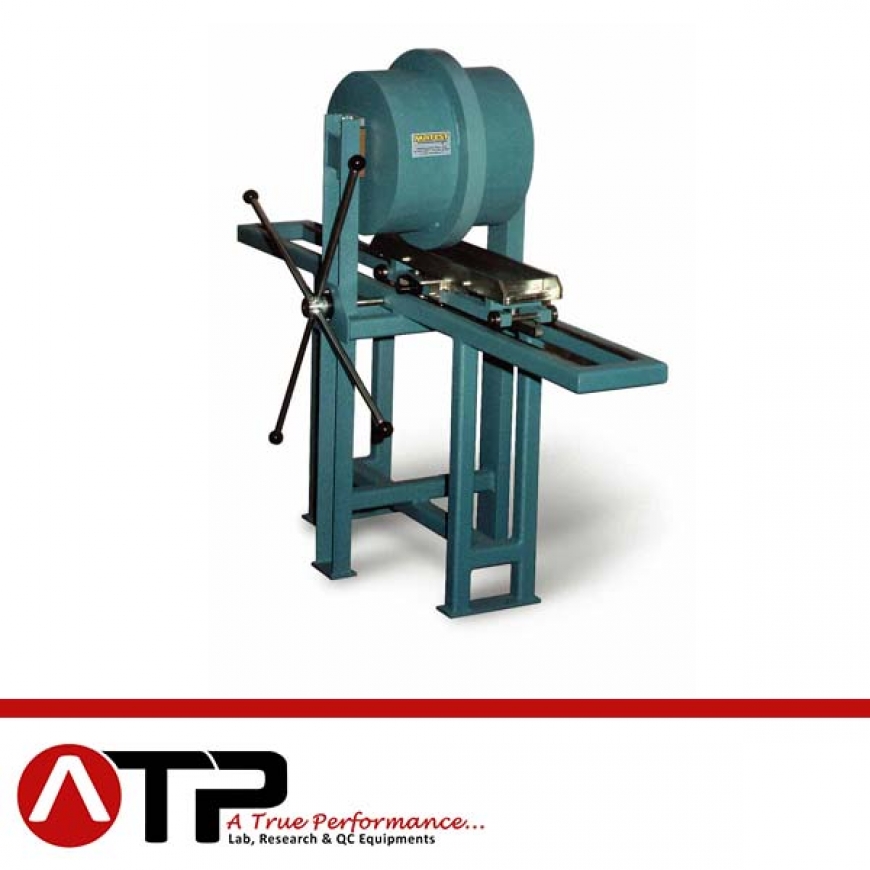

Crushing Coefficient Machine

Composed by a metallic guide 500 mm long and 140 mm wide, suitable to contain 500 gr. of testing aggregates.
The guide is slided lengthwise and transversalwise through handwheels.
In the center of the table a metallic wheel 400 kg weight with band of 50 mm wide is foreseen.
The test is performed by passing the wheel on the aggregates contained into the
guide for twelve times.

Dimensions: 1200x500x1850 mm
Weight: 640 kg APPROX
