Density Bath Apparatus

For the determination by means of a glass hydrometer in conjunction with a series of calculations of the API gravity of crude petroleum and petroleum products normally handled as liquids and having a Reid vapor pressure (ASTM D323) of 101.325 kPa (14.696 psi) or less.

This test method covers the laboratory determination using a glass hydrometer in conjunction with a series of calculations, of the density, relative density, or API gravity of crude petroleum, petroleum products, or mixtures of petroleum and nonpetroleum products normally handled as liquids, and having a Reid vapor pressure of 101.325 kPa (14.696 psi) or less.

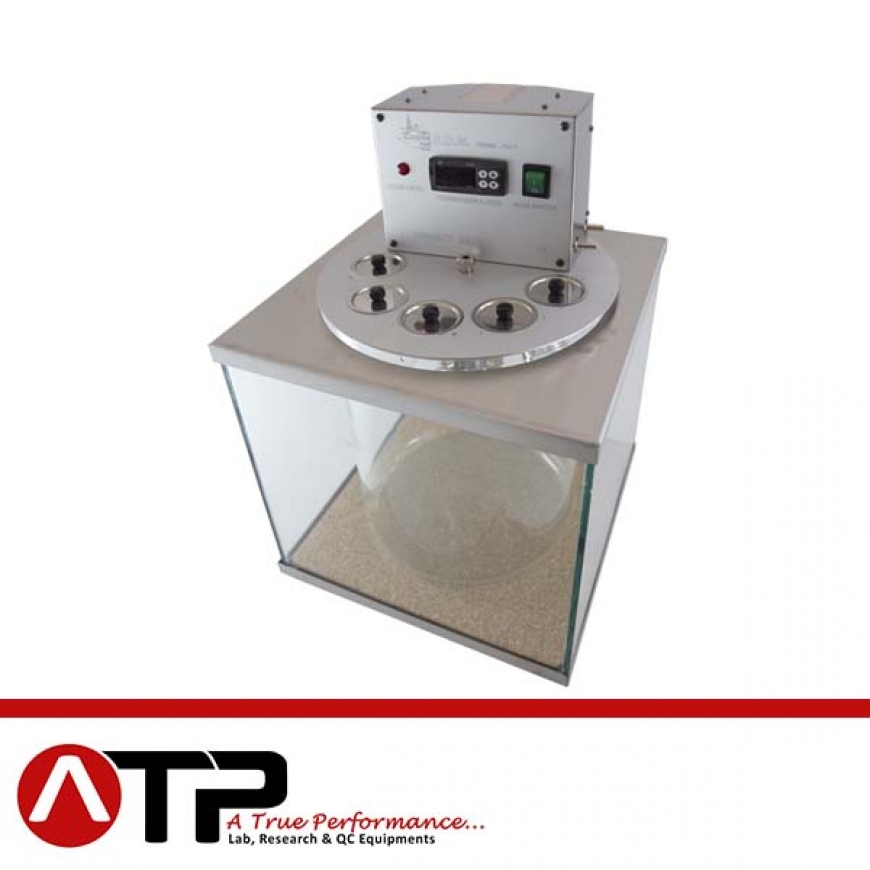

Borosilicate glass jar with cover with 5 holes Ø55 mm. or 4 Ø66 mm, leakage protection vessel made of tempered glass, included with cork plate and stainless steel base. Stainless steel control box on the cover with digital thermoregulator PID with PT100 probe class A and overtemperature alarm, stainless steel heater, cooling coil, motor stirrer, safety internal level for low liquid with warning lamp, with test tubes blocking-system and stand-by stainless steel covers

– Temperature: From ambient to+150°C (302°F)
– Stability: ±0.1°C
– Power supply: 220V 50/60Hz

– Capacity: 16 liters about
– Power: 1200W
– Dimensions: 35X35x55 cm
– Weight: 20 kg
