| Model |
03.010.1200 , 03.010.1500 , 03.010.2000 , 03.010.3000 , 03.010.4000 |
|---|---|
| Standard |
ASTM C39, BS 1610, ISIRI 1608-3 |

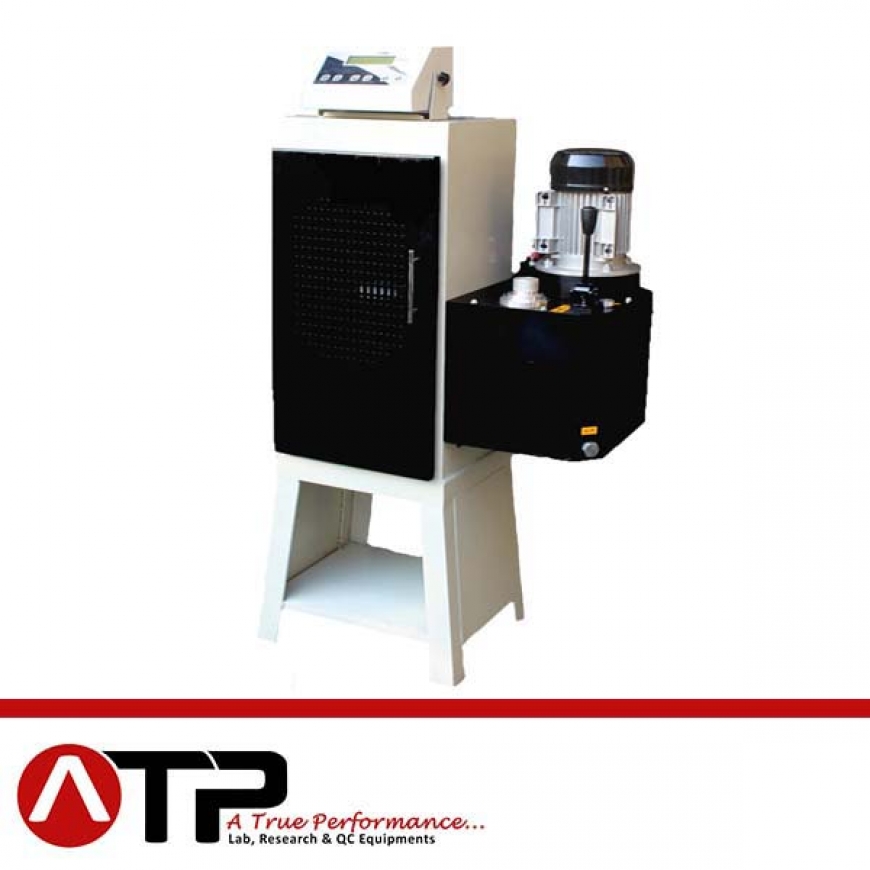

Digital Compression Testing Machine
Digital Compression Testing Machine
To determine the compressive strength of cylindrical and cubic samples, included hydraulic system, software, digital unit control, Overload program, Hardened loading plates 60 HRC
|
Model |
03.010.1200 |
03.010.1500 |
03.010.2000 |
03.010.3000 |
03.010.4000 |
|
Capacity |
1200 KN |
1500 KN |
2000 KN |
3000 KN |
4000 KN |
|
Accuracy |
1 KN |
||||
|
Max. Vertical Daylight |
320 mm |
||||
|
Max. Ram Travel |
40 mm |
||||
|
Unit |
Kgf |
||||
|
Tank Volume |
18 L |
||||
|
Compression Plates dia. |
225 mm |
||||
|
Communication |
Port-RS232 |
||||
|
Power Supply |
750W, 220V, 50Hz, 1ph |
||||
|
Dimension(mm) |
600×360×1360 |
680×430×1360 |
700×430×1400 |
800×560×1650 |
850×580×1650 |
|
Weight |
420 Kg |
460 Kg |
540 Kg |
940 Kg |
1080 Kg |
