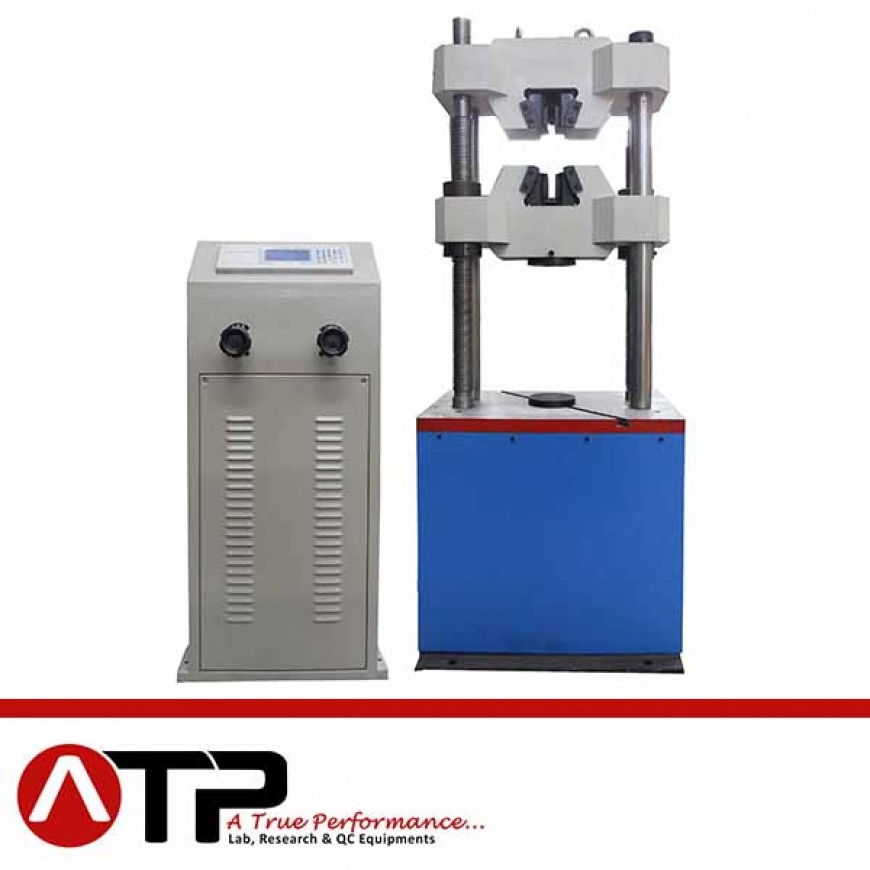

Digital Display Hydraulic Universal Testing Machin
Description
LCD display / Manual control / For tensile compression shear and bending test
Specification
Appliction:
hydraulic universal testing machine is adopting oil hydraulic power (as WAW&WEW series) to push the piston in the oil cylinder to provide loading force on specimen. It adopts analog dial dynamometer to display the test result. The loading force display on LCD monitor. The machine have been adopting in many fields like construction area, inspection area, teaching area and so on. . It can test specimen’s tensile compression flexure shear and so on.
Features:
1> The grips: Wedge clamp, firmly hold the specimens. Convertible grip will fit for all kinds of Specimen
2> Crosshead moving: crosshead is directed by reeling screw column. So that reduce vibrates.
3> Compression test: adopt double test-space , achieve tensile test and bending test at same time.
4> Stroke calculate: crosshead displacement is counted by a scale fixed on the column.
5> Oil cylinder: oil cylinder is put on the bottom to reduce unnecessary machine height.
Technical specification:
|
No. |
Technical |
Specification |
|
1 |
Max test force kN |
300 |
|
2 |
relative error of test force |
≤±1% |
|
3 |
Measurement range of test force |
4%~100% |
|
4 |
Clamping ways |
Hydraulic clamping |
|
5 |
Round specimen fixture mm |
Φ6～Φ26 |
|
6 |
Flat specimen fixture mm |
0~15 |
|
7 |
The width of flat specimen mm |
70 |
|
8 |
Max. Tensile test space mm |
550 |
|
9 |
Max. Compression test space mm |
500 |
|
10 |
Control cabinet Dimensions mm |
1200×560×550 |
|
11 |
Host Dimension mm |
730*590*2100 |
|
12 |
Motor Power kW |
2 |
|
13 |
Host weight kg |
2000 |
|
14 |
Column clearance (mm) |
450 |
|
15 |
Upper and lower platens size mm |
Φ140 |
|
16 |
Maximum piston stroke mm |
200 |
|
17 |
Piston movement speed mm/min |
80 |
Standard delivery:
|
No. |
Name |
Specification |
quantity |
Remark |
|
1 |
Host |
Chenda |
1 |
|
|
2 |
Cabinet |
Chenda |
1 |
|
|
3 |
Measurement and control system |
Chenda |
1 |
|
|
4 |
Oil pressure transducer |
|
1 |
|
|
5 |
Round specimen jaw specification |
Φ6–Φ13mm Φ13–Φ26mm
|
|
Standard delivery is 3 sets tensile fixtures. The client’s can choice according to your requirement |
|
6 |
Flat specimen jaw specification |
903
Hydraulic Servo Controlled Machines for Tensile Tests on Steel
|
