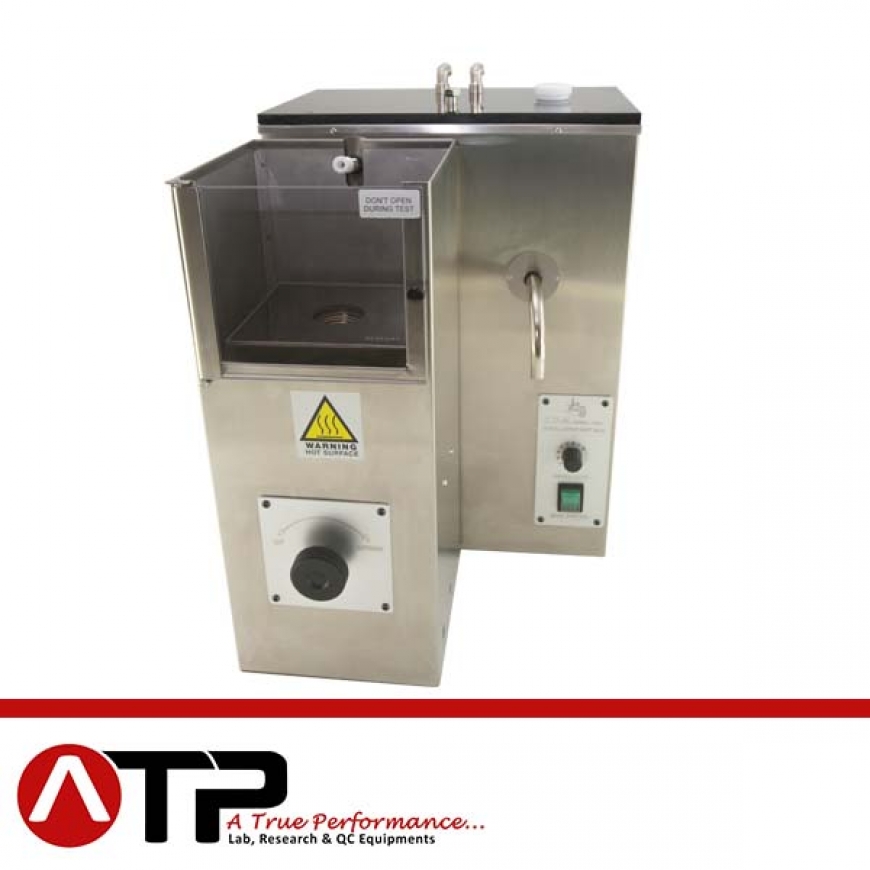

Distillation Unit

Covers the atmospheric distillation of petroleum products using a laboratory batch distillation unit to determine quantitatively the boiling range characteristics of such products as light and middle distillates, automotive spark-ignition engine fuels with or without oxygenates (see Note 1), aviation gasolines, aviation turbine fuels, diesel fuels, biodiesel blends up to 20%, marine fuels, special petroleum spirits, naphthas, white spirits, kerosines, and Grades 1 and 2 burner fuels.

Consisting of an electric heating for temperature up to 300°C (572°F) (distillation group 0-3) with quartz heater or 400°C (752°F) (distillation group 0-4) with infrared heater, mounting on left side, made of stainless steel with inspection tempered window, quartz heating system wtih electronic regulator, adjustable flask support with external control knob. Stainless steell cooling bath with nickel-plated condenser tube inclined to the right, insulated cover, connections allowing water circulation, drain valve.

– Power supply: 220V 50Hz
– Dimensions: 39x65x60 cm
– Weight: 9 kg
– Temperature: from ambient to 400°C (752°F)
– Power: 12
