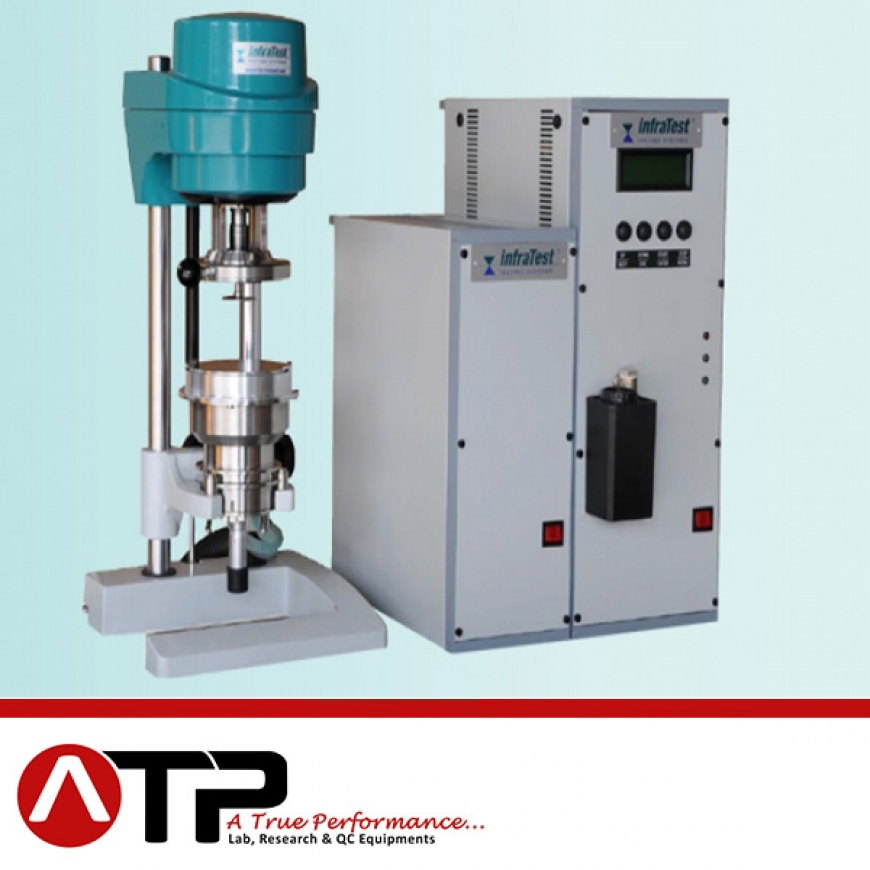

Dynamic Shear Rheometer

DSR Bitumen Rheometer measuring place

speed range:                                               0,1 … 1000 rpm

speed resolution:                                            0.015 rpm

temperature range:                                     -10 … +150°C

angle range:                                                   -50 … 300°

angle resolution:                                                0,001°

frequency range:                                          0,001 … 10Hz

torque:                                                        0,1 … 150 mNm

torque resolution:                                          0.002 mNm

supply voltage:             230 V AC ±10 %; 49 … 61 Hz

supply voltage:             110 V AC ±10 %; 49 … 61 Hz

configuration:

– Basic instrument Rheometer 1 including:

     measuring head, stand, control unit

– Plate-plate-measuring system, peltier temperated consists of:

     peltier control unit, peltier temperated basic plate,

     basic plate support, adapter, exchange grip, exchangeable plate (ø 25mm),

     measuring plate P3 (ø 25mm), measuring plate P4 (ø 8mm)

– Software for Bitumen tests acc. DIN EN 14770, ASTM D7175-08, ASTM D 4402 / D4402 M, ASTM D7405-10a, AASHTO T350-14, AASHTO M332-14, AASHTO T315-12,

     AASHTO TP 70, AASHTO M320-10

   for test execution of

• CR-Tests (shear rate tests e.g. to realise viscosity test according to ASTM D 4402 / D 4402M),
• CS-Tests (shear stress tests e.g. to realise Creep Recovery tests, MSCR-Tests acc. to ASTM D7405-10a,

AASHTO TP70, AASHTO T 350-14 and AASHTO M332-14) and

• Oscillation tests

   AASHTO T315-12, AASHTO M320-10 and DIN EN 14770),

     as well as display and analysis of measuring data

– 1 set of trimming tools, 1 set of rubber moulds

system requirements for Software

– computer operating system Windows XP SP3, Windows 7 or above

– Microsoft.NET Framework 3.5 or above (normally included in computer operating system)

– processor: at least Pentium 4 or matchable, frequency of 1,7GHz or above

– working storage at least 1 Gbyte

– free memory space on harddisk of 10 MB

– 1 CD-ROM device

– 2 COM or USB interfaces for rheometer and thermostate / cryostate

– option printer port with printer
