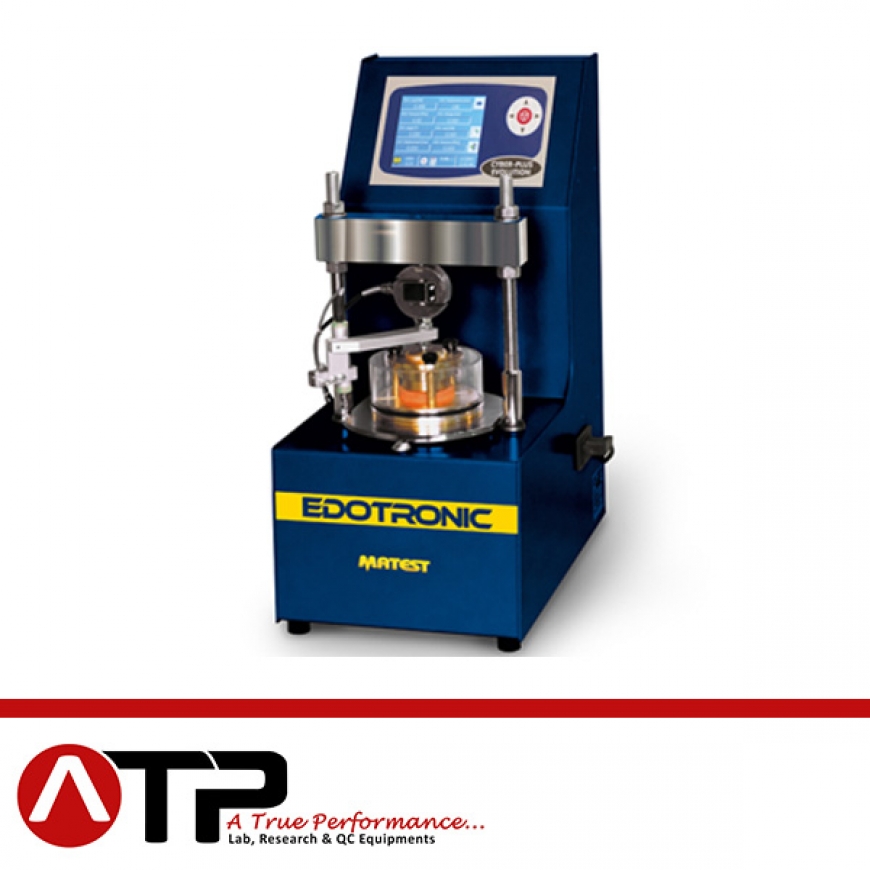

Edotronic“Touch Screen High Performance” Automatic Consolidation Apparatus Oedometer

This automatic consolidation system, ideal for modern and efficient laboratories, has been created to eliminate or reduce to the absolute minimum any forms of manual intervention, which the oedometer test requires. This therefore results in greater efficiency and cost effectiveness.
This appliance is extremely simple and easy to use.
Specifications of the frame:
Edotronic, equipped with two coaxial cylinders, provides a precise and timely weight positioning with two ranges of measurement:
0 – 1499 (N) Newton
1500 – 15000 (N) Newton
Input of compressed air (filtered): Max. 10 Bar
Resolution: 1 Newton
Precision: 1%
Maximum load: 15 kN (with 8 Bar input)
There is no need of weights as the cylinder and pneumatic piston take it to the desired weight in real time.
Weight application and removal are carried out automatically in the test sequences.

The load value is measured by a pressure transducer which is built in the regulation valve.
An additional high precision load cell will detect the effective load value and perform precise control through a closed loop system, granting repeatability and accuracy.

Firmware:
– Electronic control unit Cyber-plus Evolution with “Touch-Screen” color graphic display ¼ VGA, that runs like a standard PC based on Windows operating system, for the management of the data.
– The Touch-Screen icon interface allows an easy set-up of all the parameters and prompt execution of the test. Read value results are immediate and of extreme accuracy.
– The machine can perform the tests without any external PC, because of the “Cyber-Plus” grants performances like a PC.
– Direct connection to Intranet (connection to a LAN network) and Internet to establish a remote communication and receive an immediate diagnosis from Matest technicians, or for upgrades of the Firmware.
– Unlimited memory storage with: 2 USB ports, 1 SD card.
– Simple, rapid linearisation and calibration procedure.
– The appliance comes completely equipped with the relevant software.
– Possibility to select different languages.

The following “are not included”: software oedolab connect, consolidation cell, transducer, compressor, filter, that have to be ordered separately (see accessories).
Power supply: 230V 1ph 50/60Hz
Dimensions: 290 x 450 x h 610 mm. Weight : 30 kg
