Evaporation Greases Bath

For determination of the loss in mass by evaporation of lubricating greases and oils for applications where evaporation loss is a factor and calculation procedure for converting data obtained by Test Method D972 to apparent vapor pressures and molecular weights. It has been demonstrated to be applicable to petroleum-based and synthetic ester lubricating oils, at temperatures of 395 to 535K (250 to 500°F). However, its applicability to lubricating greases has not been established. Evaporation loss data can be obtained at any temperature in the range from 100 to 150°C (210 to 300°F)

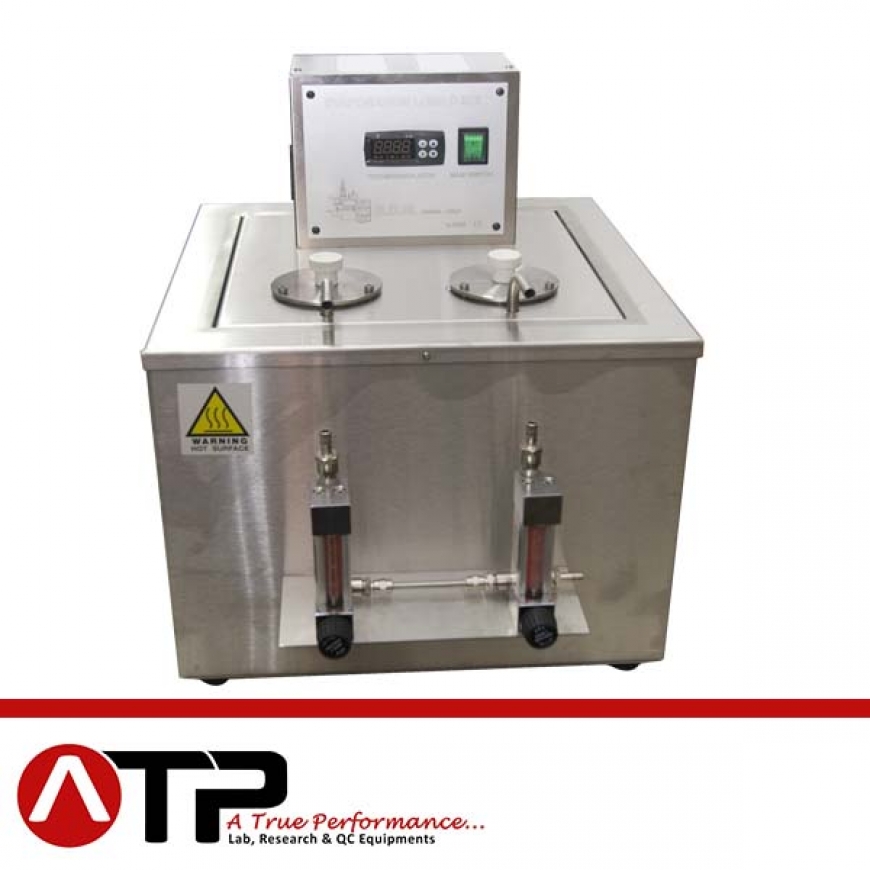

Stainless steel oil bath with insulated double wall, cover with two holes for evaporation cells, two flowmeters. stainless steel control box on the cover, temperature controlled by digital thermoregulator PID with PT100 probe class A and overtemperature alarm, stainless steel heater, motor stirrer, safety internal level for low liquid with warning lamp.

– Temperature: from ambient to 180°C (356°F)
– Stability: ±0.3°C
– Power supply: 220V 50/60Hz
– Power: 3200W
– Dimensions: 58x46x54 cm
– Weight: 27 kg
