Evaporation loss of greases and oils

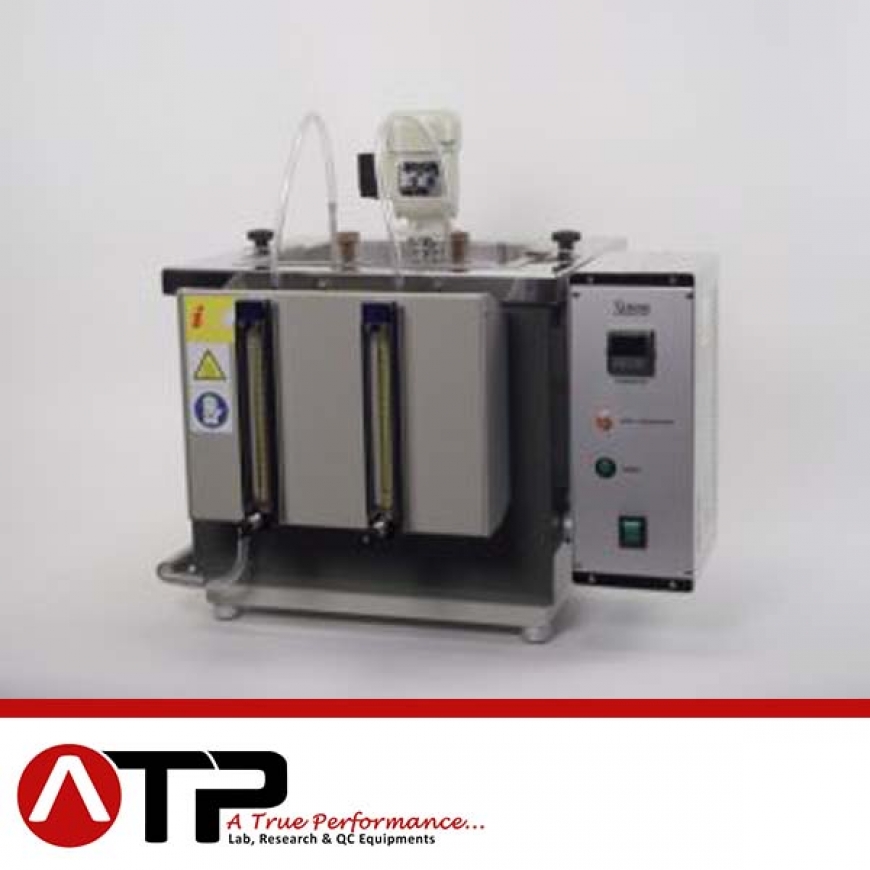

The apparatus consists of a case containing a stainless steel bath and supporting precision flowmeters. The bath is equipped with a stainless steel cover with holes for the introduction of the evaporation cells.

• Enamel finished benchtop steel case.
• Stainless steel bath with drain valve. High efficiency thermal insulation.
• Electric stirrer with stainless steel shaft and propeller.
• Stainless steel heaters.
• Stainless steel cell support.
• High precision flowmeters with needle valve and complete with calibration certificate. For a flow rate of 2 l/min.
• Air filter containing glass wool.
• Microprocessor thermoregulator with PID action: built-in digital thermometer 0.1°C accuracy. Probe: Pt100 RTD. Test range: from ambient to 160°C.
• Safety device against overheating and low-level.
• English written user manual.
• For 220 V/50 Hz connection. Power consumption 2000 W.
• Dimensions (l x w x h): mm 800 x 400 x 700 approx. Weight: kg 45 approx. (four-unit version).
• CE marked.
• Two and four place units available
• Version with mass flow controllers and software also available.

AD0972-100        Two-place unit

AD0972-110        Four-place unit

ACCESSORIES

AD0972-A00        Stainless steel cell with copper coil for air heating

AD0972-A01        Test cup for oil

AD0972-A02        Test cup for grease

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

TA022C-N00       ASTM 22C thermometer (+95°C/+103°C)

TA067C-N00       ASTM 67C thermometer (+95°C/+155°C)
