Existent gum in fuel

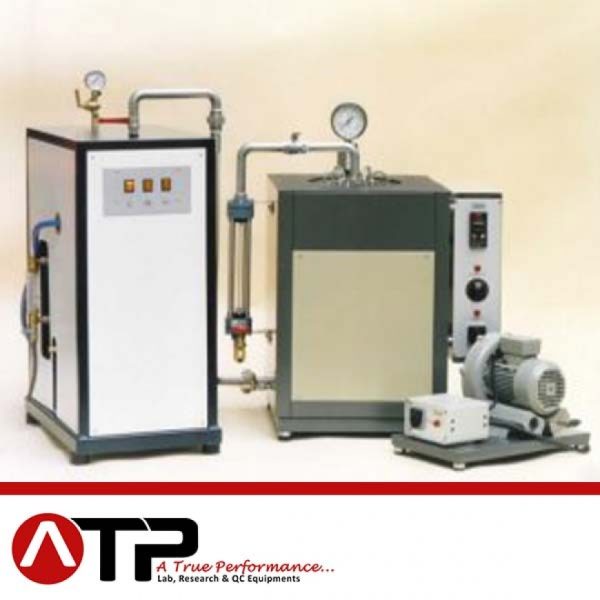

The apparatus consists of a benchtop case which houses an aluminium heating block. Two versions are available: one for the “Air Jet” test on gasoline and one for both the “Air and Steam Jet” tests with a built-in steam superheater. Steam generator and air blower are also available.

• Enamel finished benchtop steel case with robust base to support the heating block.
• Five-place aluminium heating block with steam outlets. Stainless steel steam coils and outlets (removable).
• Stainless steel coaxial heater.
• Stainless steel steam superheater inserted in the case. Complete with regulator.
• High precision flowmeter for the Air Jet test: range from 0 to 12 m3/h.
• Stainless steel gauge for the Steam Jet Test: range from 0 to 6 psi.
• Microprocessor thermoregulator with built-in digital display 1°C accuracy.  The probe is a PT100 RTD. Regulation accuracy ± 0.5 C. Working range: from ambient to 300°C.
• Safety device against overheating.
• Easy access control box placed on the right  side of the apparatus containing all the electronic and electrical components: anodized aluminium control panel with english written indications. Main and heater switch.
• English written user manual.
• For 220 V/50 Hz connections. Power consumption: 3500 W.
• Dimensions (l x w x h): mm 860 x 560 x 840 approx. Weight: 98 Kg.
• CE marked.

AD0381-100      Apparatus for the Air and Steam Jet tests

AD0381-110      Apparatus as above but only for the Air Jet test (without steam superheater). For 220V/50 Hz. Power   consumption: 2000 W. Dimensions (l x w x h): mm 750 x 490 x 680  approx. Weight 73 Kg approx.

ACCESSORIES

AD0381-A00        Electric Steam generator (400V/50 Hz, 10 kW)

AD0381-A01        Air Blower (380 V/50 Hz, 0.5 kW)

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD0381-C00        Pyrex glass sample container

TA003C-N00       ASTM 3C thermometer (-5°C/+400°C)
