| Model |
EAMD 9401-03 , EAMD 9402-03 , EAMD 9403-03 , EAMD 9404-03 |
|---|

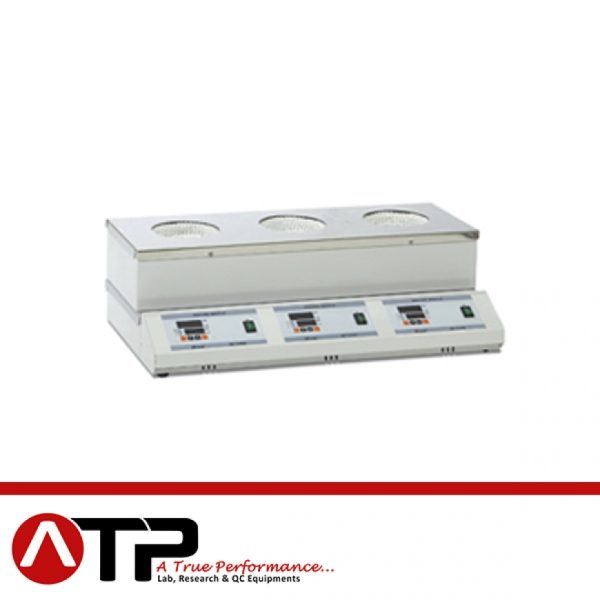

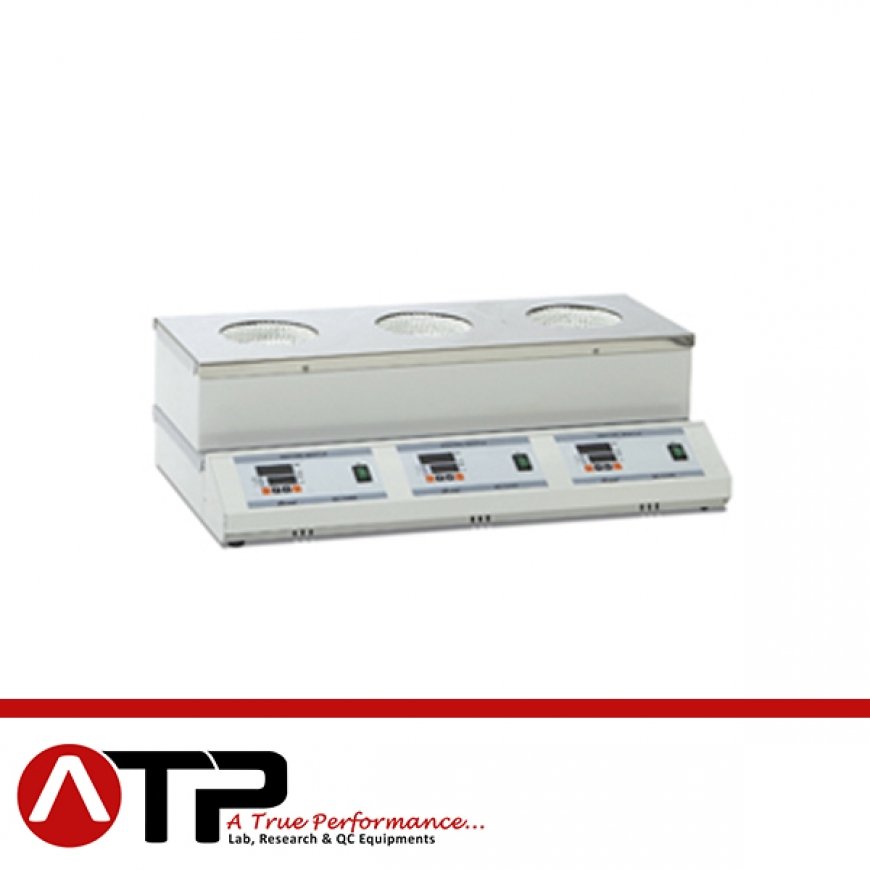

Extraction Mantles (Digital)
Independent and separate control function
Max. temperature 450℃
Accurate temperature control by PID auto-tuning function
Ceramic fiber with strong thermal resistance
Stainless steel top cover with corrosion-proof
Temp. Controller : Digital PID auto-tuning
Temp. Accuracy : ±1℃ (on using external sensor)
Support Rods : Ø 12.7mm dia.(standard)
|
Model |
Capacity |
Watts |
Number of |
Dimensions |
Internal |
Weight (Kg) |
|
EAMD 9401-03 |
100ml |
80W × 3 |
3 |
470×260×140 |
45 |
5.8 |
|
EAMD 9402-03 |
250ml |
150W × 3 |
3 |
520×280×160 |
60 |
7.2 |
|
EAMD 9403-03 |
500ml |
260W×3 |
3 |
580×300×175 |
75 |
8.5 |
|
EAMD 9404-03 |
1000ml |
380W×3 |
3 |
670×330×185 |
85 |
10.2 |
