FIELD CBR TEST SET

Used to determine quickly and efficiently the bearing capacity of soils on road constructions, foundations, road subgrades etc.

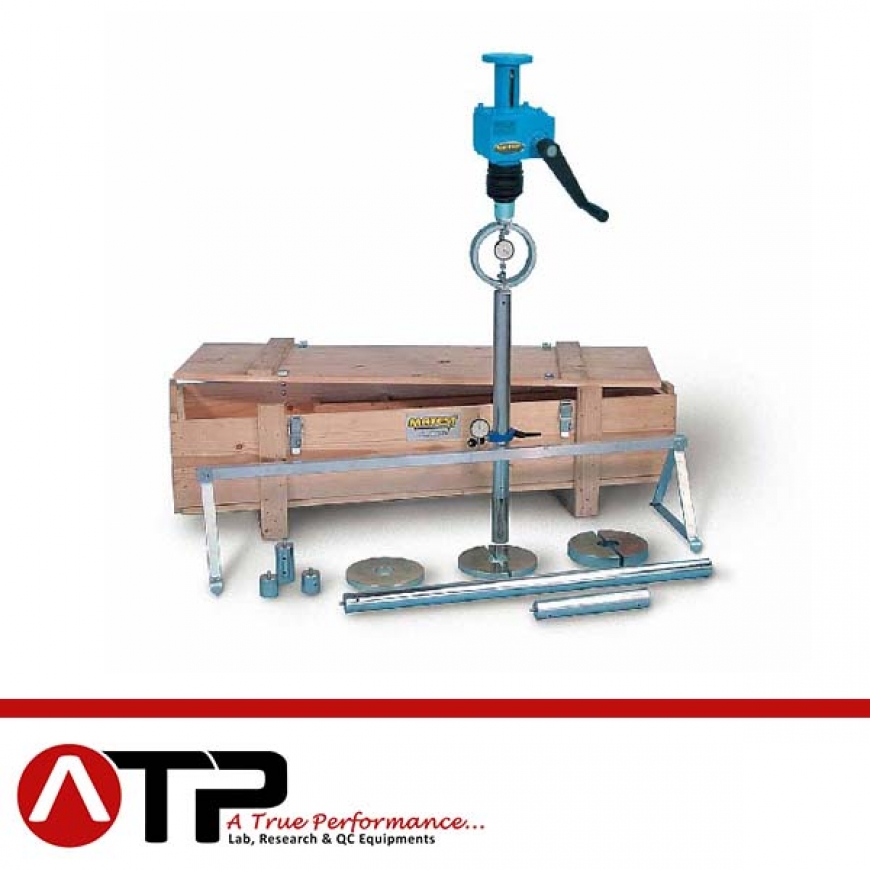

The S220KIT tester comprises:

S221-01 Mechanical jack 50 kN capacity
S370-09 Load ring 40 kN capacity
S212-01 CBR penetration piston
S377 Dial gauge 25 x 0,01 mm
S212-03 Dial gauge holder
S220-01 Datum bar 1400 mm long; slotted surcharge weights 4,5 and 9 kg and annular 4,5 kg; set of extension rods: 2×100 mm, 1×300, 600, 1000 mm; accessories; wooden carrying case.

Weight: 70 kg approx.

NOTE:
This machine includes some common component (like for ex. the mechanical jack mod. S221-01). It is therefore possible to combine these components for different machines, with some economical advantage.
