| Model |
E172-01 |
|---|---|
| Standard |
EN 196-01 , NF P15-451 , EN ISO 679 , DIN 1164 |

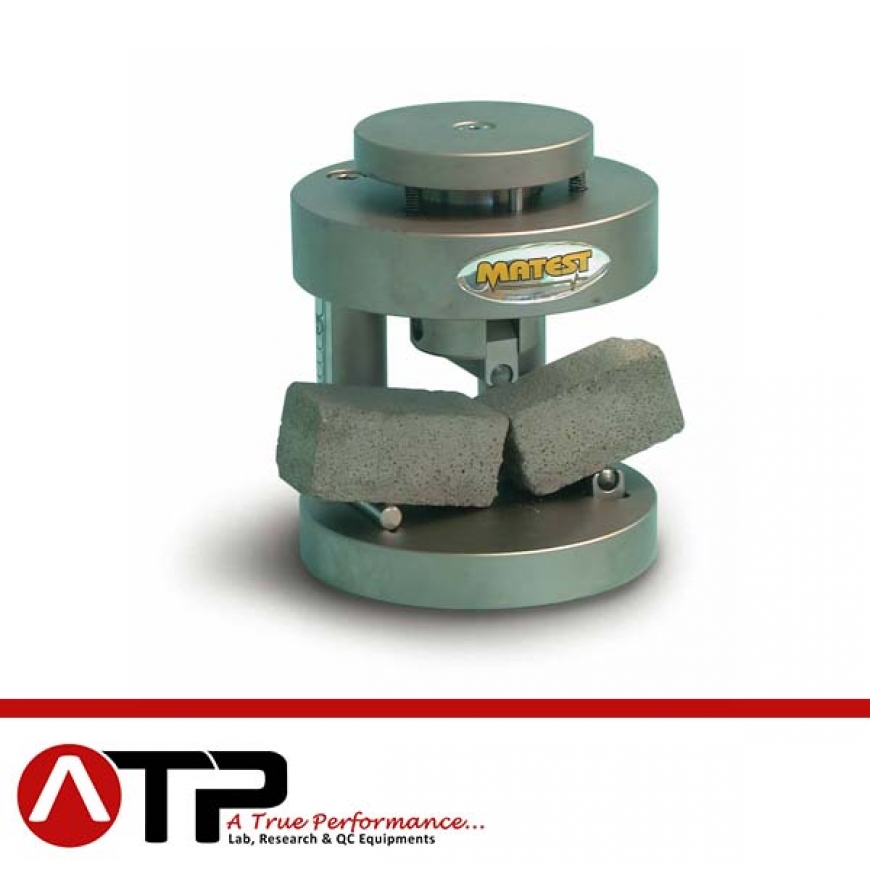

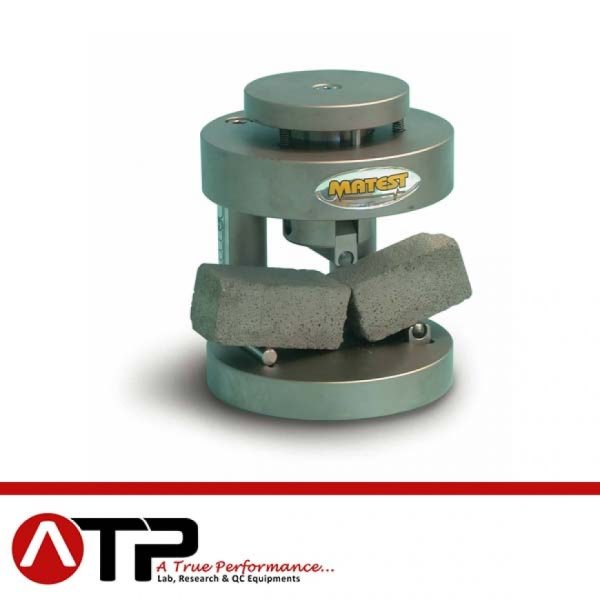

Flexure Device for 40,1x40x160 mm Prism
Flexure device for 40,1x40x160 mm prisms. Upper bearer is seat ball assembled.
The distance between lower bearers is 100 mm and one of them has a spherical seat. Cadmium plated for rust protection.
Dimensions: 160x153xh185 mm
Weight: 11 Kg
