Foaming Bath

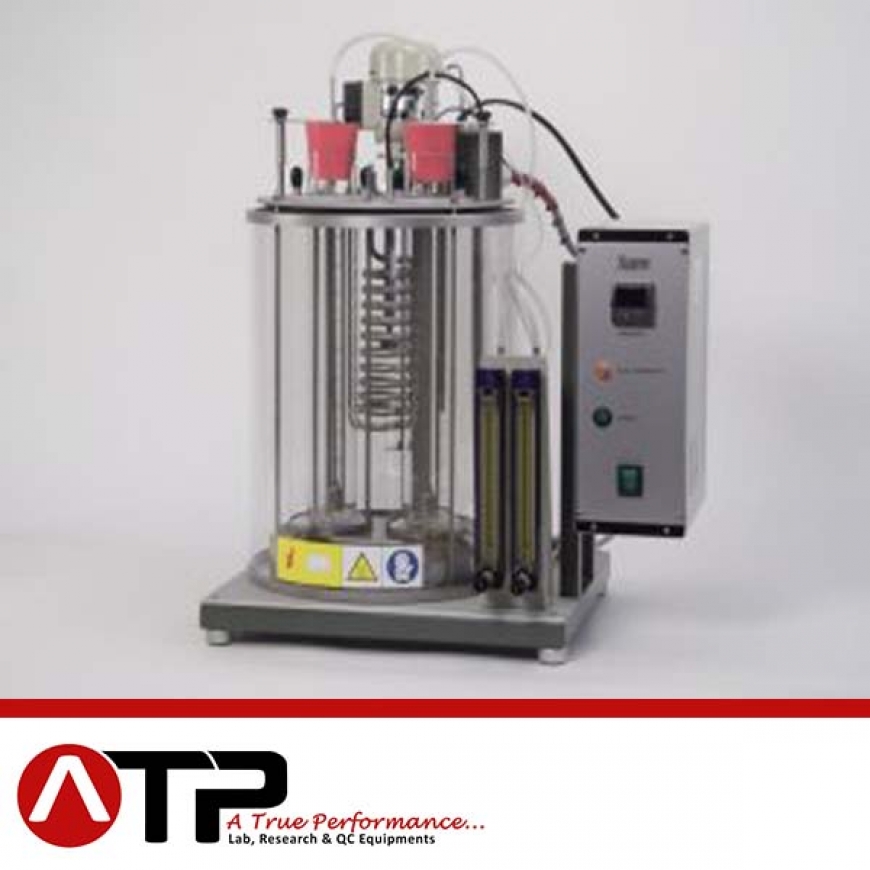

The apparatus consists of a steel frame supporting a Pyrex jar with a cover that allows to insert and fix two cylinders without necessity of any steel ring to avoid floatation, two high precision flowmeters and a control box containing all the electronics.

• Steel frame supporting one Pyrex jar, suitable for tests at 24 and at 93.5°C.
• Aluminium cover with two holes for the cylinders: locking clamps to hold the cylinders in position and thermometer jacket.
• Electrical bath stirrer on the jar cover.
• Stainless steel heaters.
• Stainless steel cooling coils: when connected to a cold water source, it permits to keep the bath temperature (24°C) prescribed in ASTM D 892 sequence 1.
• High precision variable area flowmeters complete with needle valve, supports and diffuser connections. Individual calibration certificates.
• Microprocessor thermoregulator with PID action and built-in digital display 0.1°C accuracy. Probe: Pt100 RTD.
• Safety devices against overheating and low level.
• Easy access control box.
• English written user’s guide and installation instructions.
• For 220 V/50 Hz connections. Power consumption 2200 W.
• Dimensions (l x w x h): mm 450 x 420 x 680. Weight: kg 30 approx.
• CE marked.
• Version with mass flow controller and software also available.

AD0892-100        Single-unit apparatus

ACCESSORIES

AD0892-A00        Wet test meter

AD0892-A01        Officially certified wet test meter

AD0892-A02        Air pump

AD0892-A03        Glass drying tower

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD0892-C00        Graduate pyrex glass cylinder

AD0892-C01        Rubber stopper with air inlet and outlet

AD0892-C02        Norton spherical Alundum gas diffuser stone (certified for permeability and pore size)

AD0892-C03        Mott stainless steel cylindrical gas diffuser (certified for permeability and pore size)

TA012C-N00       ASTM 12C thermometer (-20°C/+102°C)
