Foaming Bath(4 Positions)

For determination of the foaming characteristics of lubricating oils at 24°C (75.2°F) and 93.5°C (200.3°F). Means of empirically rating the foaming tendency and the stability of the foam are described and for determining the foaming characteristics of lubricating oils (specifically transmission fluid and motor oil) at 150°C (302°F)

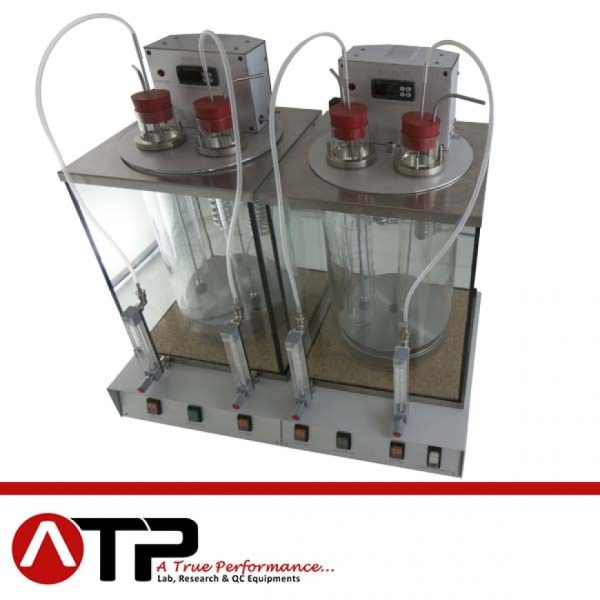

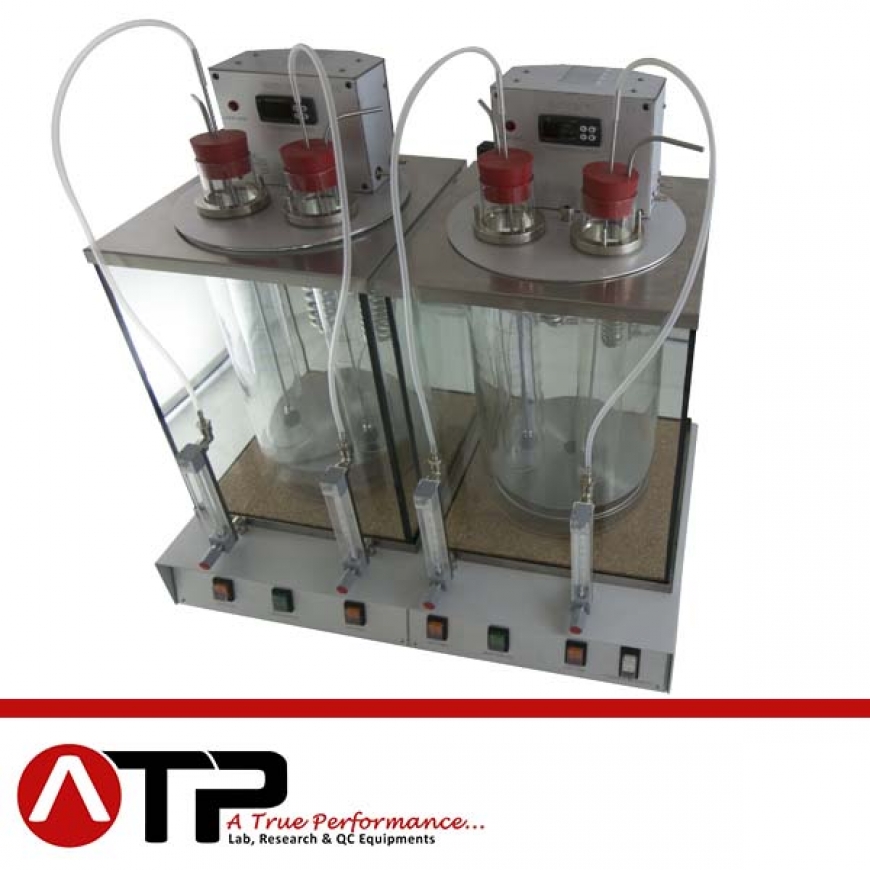

Consists of two tanks, one for working 24°C (75.2°F) and one for working up to 150°C (302°F), fitted with cover with two hole, which allows two cylinders to get through, and a cooling coil, leakage protection vessel made of tempered glass supplied with cork disk supporting and stainless steel base. Stainless steel control box on the cover, temperature controlled by digital thermoregulator PID with PT100 probe class A and overtemperature alarm, stainless steel heater, cooling coil for improved control near to ambient temperature, motor stirrer, safety internal level for low liquid with warning lamp. Plate base painted with anti-acid epoxidy products which houses four indipendents blowing pumps connected to four flowmeters 25-250 ml/min. Complete with: 4x flowmeters, 4x graduated cylinders, 4x diffuser ball-shape, 4x rubber plug and diffuser tubes.

– Temperature: from ambient to +150°C (302°F)
– Stability: ±0.1°C
– Capacity: about 23+23 l
– Power supply: 220V 50/60Hz
– Power: 1200+2200 W
– Dimensions: 76x50x77 cm
– Weight: 65
