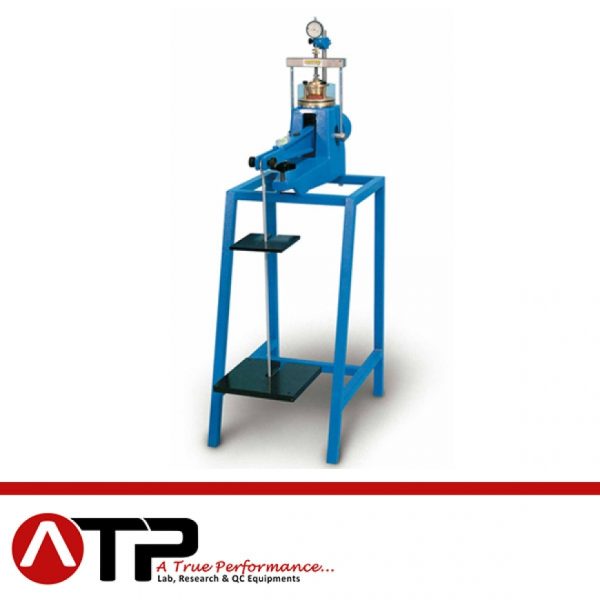

Front Loading Oedometer Consolidation Apparatus

Rigidly manufactured from aluminium alloy casting to provide a high degree of accuracy with any frame distorsion under load. The load bridge group is supported in high accuracy self-aligning seat balls.
The beam provides three loading ratio: 9:1 10:1 11:1 and the beam assembly is fitted with an adjustable counterbalance weight.
Maximun load: 170 kg of slotted weights, corresponding to 1870 Kg using the beam ratio 11:1
The oedometer accepts cells up to 100 cm2
Supplied complete with rod holding the weights and coupling block holding the dial gauge or transducer.
Supplied “without”: consolidation cell, weights, dial gauge (or transducer), holding bench which have to be ordered separately.
Weight: 25 kg approx.

ACCESSORIES
S376 DIAL GAUGE 10 mm travel x 0,01 mm subd. for vertical displacements.

S375-01 DIAL GAUGE 12 mm travel x 0,002 mm subdiv.

Alternative solution:
S336-11 LINEAR VERTICAL DISPLACEMENT TRANSDUCER, 10 mm travel
S336-30 EXTENSION CABLE 2 metres long
S336-31 EXTENSION CABLE 5 meters long
S336-32 EXTENSION CABLE 10 meters long

Or:
S336 DATATRONIC, 128-channel automatic data acquisition system for geotechnical tests, complete with basic processing software

S335 DATATRONIC, 7-channel automatic data acquisition system for geotechnical tests, complete with basic processing software
