| Model |
Proceq DY |
|---|---|
| Standard |
EN 1542,EN 1015-12, EN 1348, ISO 4624, ASTM D 454, ASTM C 1583, ASTM D 7234, ASTM D 7522, ZTV-ING, SIA 281/3, JGJ 110, JGJ 126, JGJ 144 |

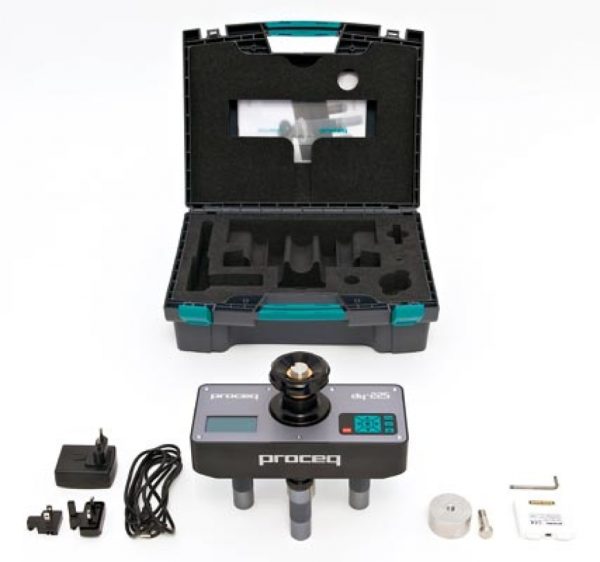

Fully automated pull-off adhesion testers
Fully automated pull-off adhesion testers
An automated pull-off tester with a maximum pulling force of 6 kN & 16 KN & 25 KN .It has increased accuracy for low strength applications such as testing adhesive strength of mortars and renders and suited for very high strength applications such as testing of fibre reinforced polymers (FRP) bonded to concrete structures.
Calibration accuracy EN ISO 7500-1 Class 1
Comprehensive range of test discs plus adjustable foot configuration to cover a wide range of applications
Simple programming of key parameters and fully automated test
Proceq DY-206 Proceq DY-216 Proceq DY-225
Working Range 0.3 to 3.1 MPa 0.81 to 8.1 MPa 1.3 to 12.7 MPa
Tensile force (50 mm test disc) 0.6 to 6 KN 1.6 to 16 KN 2.5 to 25 KN
Maximum Stroke 5 mm 5 mm 5 mm
Maximum Pulling Speed 4.65 mm/min 4.65 mm/min 2.2 mm/min
