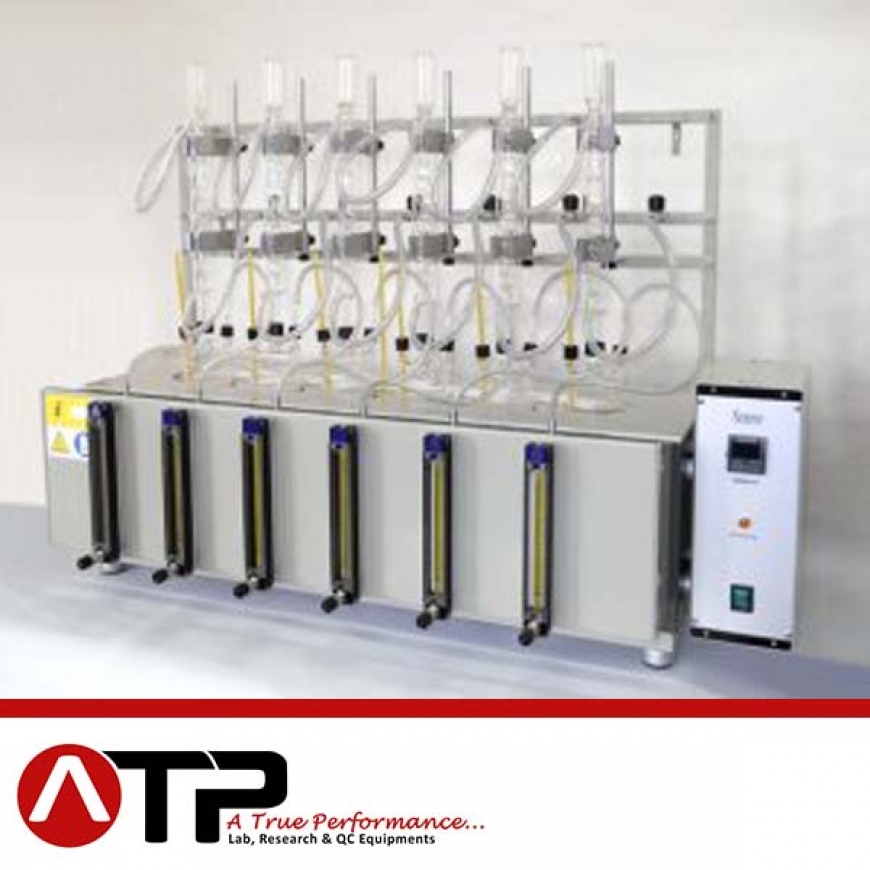

Glassware corrosion test

The apparatus consists of a benchtop case hosting the heating bath (aluminium block bath also available) and a rear frame with a manifold for the cooling water and a series of supports for the condensers. The main advantage of the aluminium block apparatus is that hot oil and fumes are completely eliminated.

• Enamel finished benchtop steel case.
• Stainless steel oil bath with four holes for the glassware. Optionally, aluminium block heater with four holes for the glassware.
• Electric stirrer (only in the water/oil bath versions).
• Stainless steel electric heater.
• Glassware support with lifting device.
• Removable stainless steel cover.
• Frame supporting a manifold with four water outlets with regulating valve. A second manifold is provided for connection to the outlets of the condensers.
• Electronic thermoregulator with PID action and built-in digital display. Probe: Pt100 RTD.
• Working range: from ambient to 160°C.
• Safety device against overheating and low-level.
• Four high precision variable area flowmeters 150 mm scale length, 0 to 130 ml/min measurable flow with hose connectors at the outlet. Inlet connected to a manifold.
• English written user manual.
• For 220 V/50 Hz connections. Power consumption: 2000 W.
• Dimensions (l x w x h): 700 x 400 x 850 mm. Weight: 50 kg approx.
• CE marked.
• Six and eight-place apparatus also available. For low-boiling accessories please request separate quotation.
• Version with mass flow controller and software also available.

AD1384-100        Four-place apparatus, water/oil bath

AD1384-110        Four-place apparatus, aluminium block

AD1384-120        Six-place apparatus, water/oil bath

AD1384-130        Six-place apparatus, aluminium block

AD1384-140        Eight-place apparatus, water/oil bath

AD1384-150        Eight-place apparatus, aluminium block

ACCESSORIES

AD1384-A00        Set of four specimen bundles

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD1384-C00        Container, 1000 ml with cover

AD1384-C01        Condenser, glass, 400 mm length

AD1384-C02        Aerator tube

TA001C-N00       ASTM 1C thermometer (-20°C/+150°C)
