Grease worker

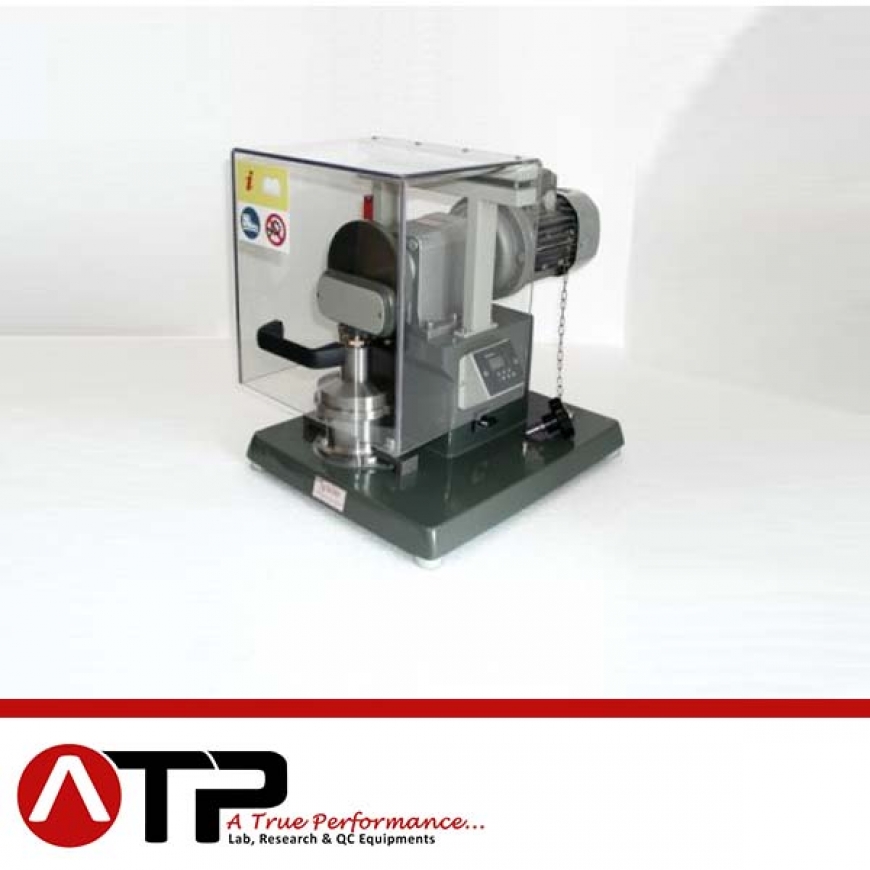

Worked penetration results may be used to establish the consistency of lubricating greases after prolonged working. The change in worked penetration results on a grease after prolonged working are believed to be a measure of its shear stability under the conditions of the test.The electrically operated grease working machine consists of a geared motor for 60 strokes/min mounted on a aluminium base with clamps to fix the grease workers. The number of strokes, continuously showed on a display, can be preset to stop the worker after any required number of strokes up to 100,000.

• Cast aluminium base, machine worked and enamel finished. Benchtop version.
• Geared motor unit for 60 strokes/min.
• Two crank flanges, cast iron.
• Programmable counter with six digits.
• Two grease workers.
• Two worker plates, 51 holes.
• Wrench for opening and closing of grease workers.
• For 380V / 50Hz connections: 600 W power consumption.
• English written user manual.
• Dimensions (l x w x h): mm 450 x 450 x 350 approx. Weight: kg 30 approx.
• CE marked.
• Single and dual units available.

AD0217-100        Single-unit grease working machine

AD0217-110        Dual-unit grease working machine

ACCESSORIES

AD0217-A00        Worker plate, 51 holes

AD0217-A01        Worker plate, 270 holes (FTMS 313.3)

AD0217-A02        Lip seal for rod

AD0217-A03        Overflow ring

AD0217-A04        Blank cup cover (used when preheating the sample prior to test)
