| Model |
Equotip Piccolo / Bambino 2 |
|---|---|
| Standard |
ASTM A 956, ASTM E 140, ASTM A 370, ISO 16859, DIN 50156, GB/T 17394, JB/T 9378 |

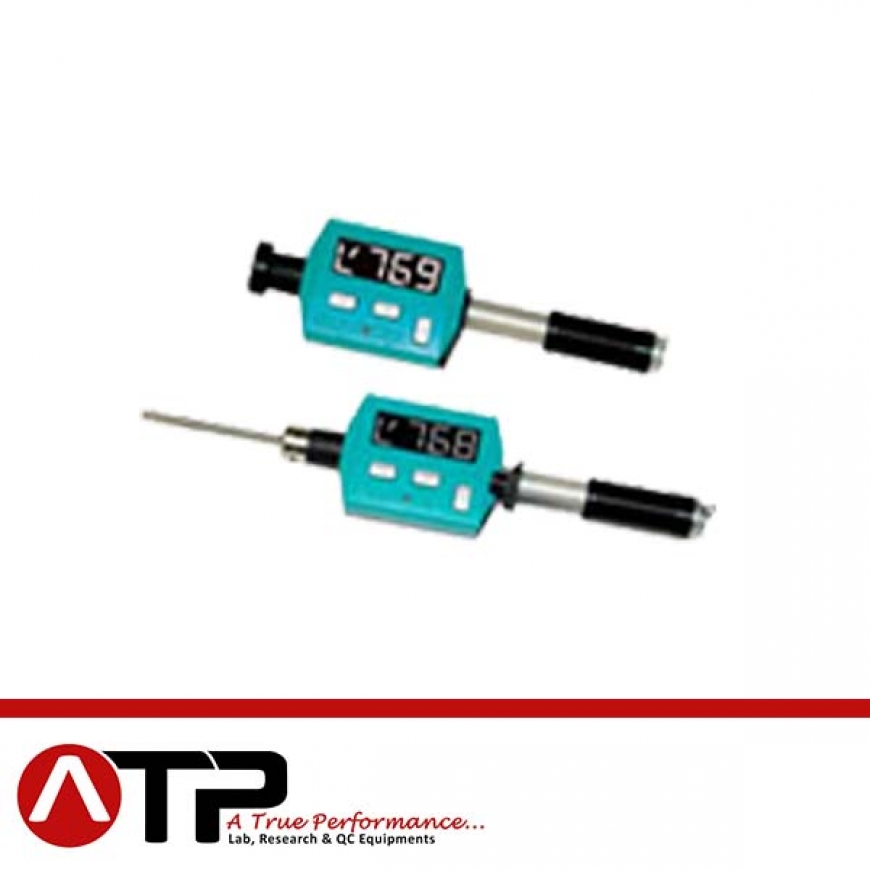

Hardness Tester
Fully integrated and handy Leeb hardness tester with a compact and robust housing. Ideally suited for quick on-site hardness tests. Optional DL probe for confined spaces and recessed surfaces. Equotip Piccolo 2 allows the transfer of the data to a PC
Entry model for quick on-site tests
Compact housing and automatic angle correction allow flexible use
Comes with the high accuracy known for all Equotip products
|
Native Scale |
HL |
|
Measuring Range |
150 – 950 HL |
|
Measuring Accuracy |
± 4 HL (0.5% at 800 HL) |
|
Available Scales |
HB, HV, HRB, HRC, HS, MPA (Equotip Piccolo 2 only) |
|
Available Probes |
Leeb D / DL |
|
Combination With Other Methods |
|
|
Average Roughness Ra (µm / µinch) |
2 / 80 |
|
Minimum Mass (kg / lbs) |
0.05 / 0.2 |
|
Minimum Thickness (mm / inch) |
3 / 0.12 |
