| Model |
RA 8 |
|---|

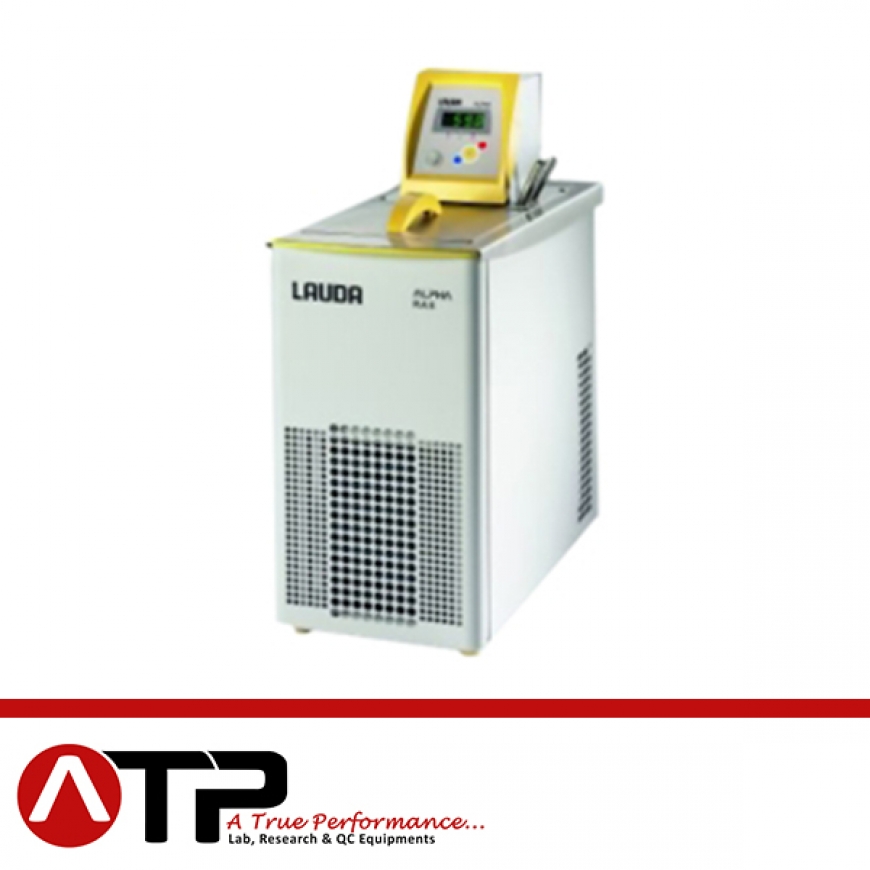

Heating and cooling thermostats 8L
Thermostatic bath/circulator with simplest operation and integrated cooling system
The cooling technology of the cooling thermostats RA 8, RA 12 and RA 24 enables cooling performance through the entire temperature range of -25 up to 100 °C
|
Working temperature min. |
°C |
-25 |
|
Working temperature max. |
°C |
100 |
|
Ambient temperature min. |
°C |
5 |
|
Ambient temperature max. |
°C |
40 |
|
Temperature stability |
±K |
0.05 |
|
Cooling output at 20°C measured with ethanol |
kW |
0.23 |
|
Cooling output at 10°C measured with ethanol |
kW |
0.19 |
|
Cooling output at 0°C measured with ethanol |
kW |
0.16 |
|
Cooling output at -10°C measured with ethanol |
kW |
0.13 |
|
Cooling output at -20°C measured with ethanol |
kW |
0.08 |
|
Cooling output at -25°C measured with ethanol |
kW |
0.03 |
|
Application |
external, External and inside the bath, Inside the bath |
|
|
Heater power |
kW |
1.50 |
|
Power consumption |
kW |
1.80 |
|
Bath volume min. |
L |
5 |
|
Bath volume max. |
L |
7.50 |
|
Bath opening width |
mm |
165 |
|
Bath opening depth |
mm |
177 |
|
Bath depth |
mm |
160 |
|
usable depth |
mm |
140 |
|
Dimensions (WxDxH) in mm |
235x500x605 |
|
|
Ø nipples |
mm |
13 |
|
Pump pressure max. |
bar |
0.20 |
|
Pump flow max. (pressure) |
L/min |
15 |
