High-temp. Foaming Bath

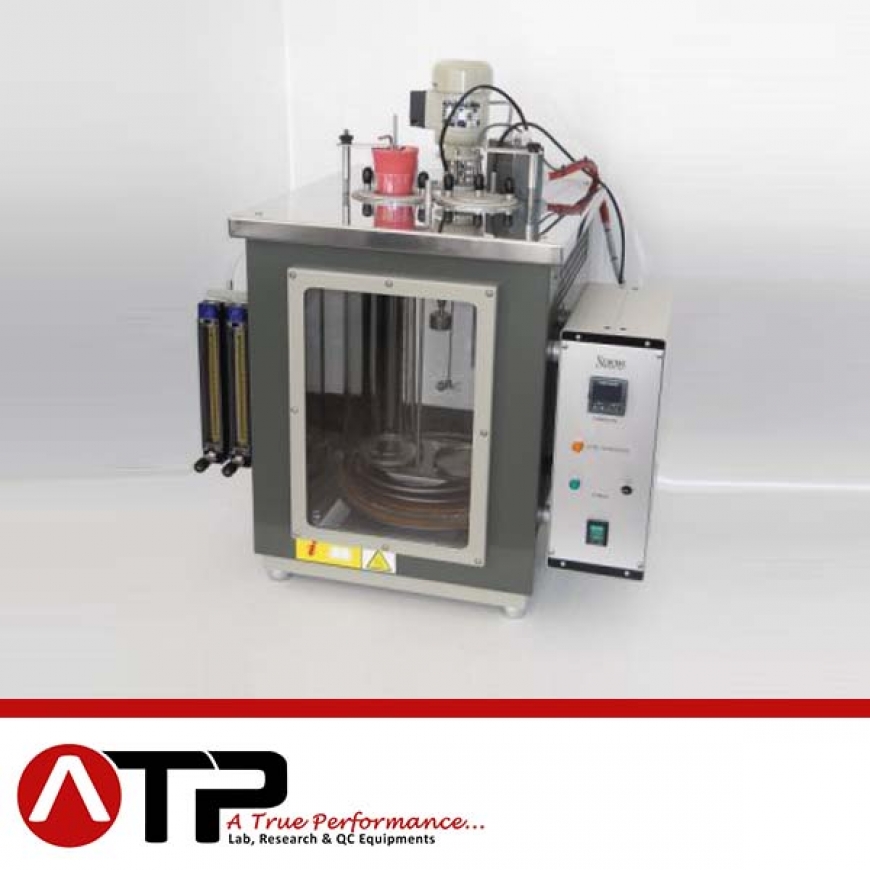

The apparatus consists of a steel case containing a Pyrex jar with an insulated cover that allows to insert two cylinders without necessity of any steel ring to avoid floatation, two high precision flowmeters and a control box containing all the electronics.

• Enamel finished steel case containing one Pyrex jar, suitable for tests up to 160°C. Double-walled window on the front.
• Insulated cover with two holes for the cylinders: locking clamps to hold the cylinders in position and thermometer jacket.
• Electric stirrer.
• Stainless steel heaters.
• Two high-precision variable area flowmeters complete with needle valve, supports and diffuser connections. Individual calibration certificates.
• Microprocessor thermoregulator with PID action and built-in digital display 0.1°C accuracy. Probe: Pt100 RTD.
• Safety devices against overheating and low level.
• Easy access control box.
• English written user’s guide and installation instructions.
• For 230V/50 Hz connections. Power consumption 2200 W.
• Dimensions (l x w x h): mm 680 x 540 x 800. Weight: kg 35 approx.
• CE marked.
• Version with mass flow controller and software also available.

AD6082-100        Apparatus

ACCESSORIES

AD6082-A00        Wet test meter

AD6082-A01        Air pump

AD6082-A02        Glass drying tower

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

AD6082-C00        Graduate Pyrex glass cylinder

AD6082-C01        Rubber stopper with air inlet and outlet tubes

AD6082-C02        Mott stainless steel cylindrical gas diffuser

TA041C-N00       ASTM 41C thermometer (+98°C/+152°C)
