High temperature evaporation loss

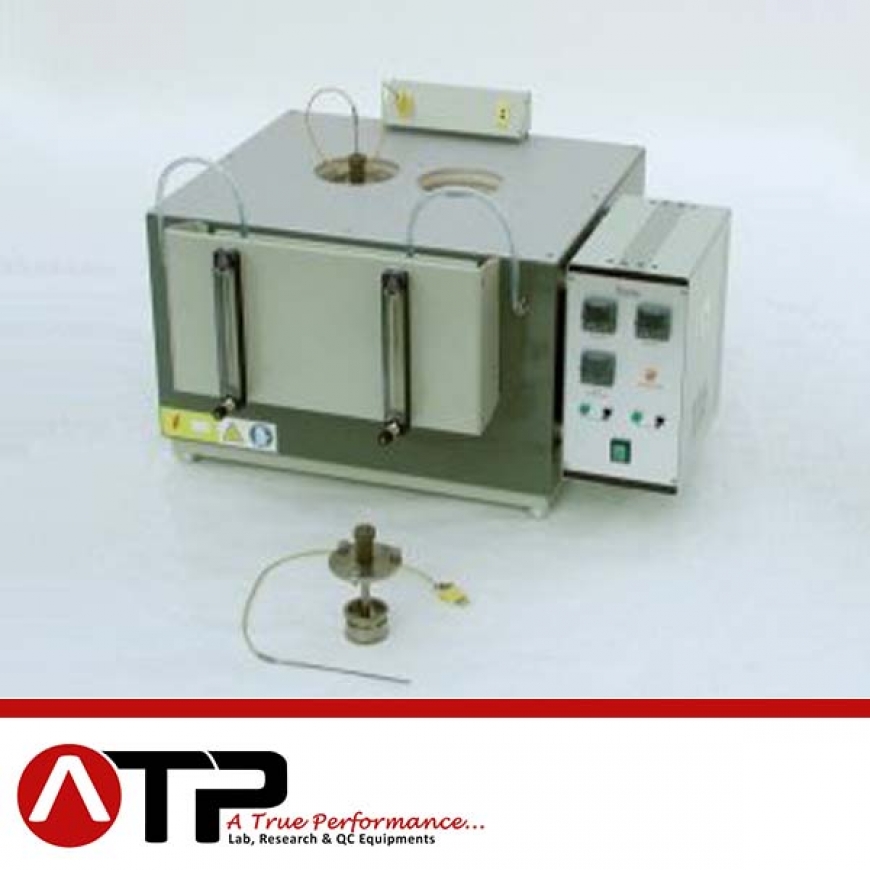

The apparatus consists of a case hosting the aluminium block and supporting precision flowmeters. The block has jackets for the introduction of the cups: the air preheater is in the bottom. Each position is equipped with a digital display, connected to a thermocouple, that continuously shows the temperature of the air coming out from the cell.

• Enamel finished benchtop steel case.
• High efficiency thermal insulation to avoid heating of the external case.
• Aluminium block with holes for the introduction of the cell.
• Air preheater inserted in the bottom of the block, one for each position: each preheater is independently regulated through an electronic voltage variator.
• Stainless steel band heaters.
• Covers, air eduction tubes hoods and cups, stainless steel. Kalrez gaskets.
• Digital displays (one for each position) for the indication of the temperature of the air coming out from the cells. Probe: type K thermocouple (also supplied).
• High precision flowmeters with needle valve and complete with calibration certificate, 0-3 l/min scale.
• Air filter fixed on the case and containing glass wool.
• Microprocessor thermoregulator wiith PID action: built-in digital thermometer 0.1°C accuracy. Pt100 probe. Test range: from ambient to 316°C.
• Safety devices against overheating.
• English written user manual.
• For 220 V/50 Hz connection. Power consumption 2000 W.
• Dimensions (l x w x h): mm 860 x 730 x 520 approx. Weight: kg 100 approx. (2-place version)
• CE approved.
• Two and four-place units available

AD2595-000        Two-place unit

AD2595-100        Four-place unit

ACCESSORIES

AD2595-A00        Digital thermometer

CONSUMABLES

AD2595-C00        Type K thermocouple with supports (for air temperature measurement)

AD2595-C01        Cover and eduction tube

AD2595-C02        Sample cup with hood

AD2595-C03        Gasket

TA003C-N00       ASTM 3C thermometer (-5/+400°C)
