High temperature viscosity

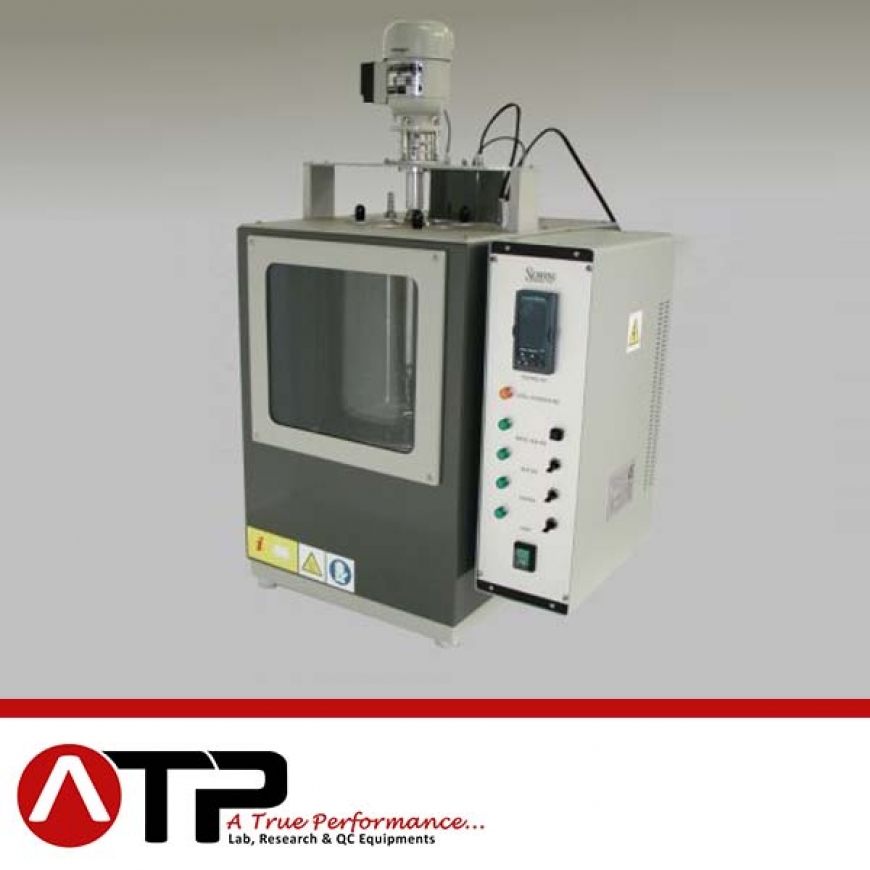

The apparatus consists of a benchtop steel case containing a pyrex jar, 330 mm deep, that permits the use of a wide range of viscometer tubes. Up to six viscometer tubes can be inserted on a turntable that allows to carry in the front of the jar the tube on which the operator is working on.

• Enamel finished benchtop steel case.
• Borosilicate glass jar 330 mm deep visible through the front window.
• Built-in lighting device placed on the rear side of the case and covered with a frosted glass to avoid dazzling to the operator.
• Steel safety recovery bath capable to contain the liquid in case of breaking of the jar.
• Electric stirrer.
• Six-position turntable built-in the top cover: it permits each viscometer tube to be brought to the front without take it off the bath. Suitable for Cannon-Fenske and Ubbelohde tubes.
• Stainless steel heaters: the auxiliary heater automatically switches off when the selected temperature has been reached.
• Stainless steel cooling coil: when connected to a cold water source it permits to keep temperatures below ambient in the jar.
• Electronic temperature control ± 0.01°C. Probe: Pt100 RTD.
• Digital setting of the desired bath temperature: setting accuracy 0.01°C. Digital thermometer 0.01°C accuracy.
• Working range: from ambient to 150°C.
• Six synthetic rubber tube holders for Cannon Fenske or Ubbelohde viscometer tubes.
• Six viscometer tube hole stainless steel covers.
• Control thermometer jacket placed on the bath cover.
• Safety devices against overheating and low-level.
• Easy access control box placed on the right side of the apparatus and containing all the electronic and electrical components: aluminium control panel with english written indications.
• English written user manual.
• For 220 V/50 Hz connections. Power consumption 1800 W.
• Dimensions (l x w x h): mm 460 x 520 x 900. Weight: 45 kg.
• CE marked.

AD0445-111     Apparatus with built-in digital thermometer, 0.01 °C accuracy

AD0445-120    Low cost version without surrounding case, recovery bath, rotating cover, digital thermometer and rear light. The apparatus consists of a metal base supporting a Pyrex jar and the control box. The jar cover has five jackets for the capillaries. Working range: from ambient to 120°C. The electronics is the same of the AD0445-111

ACCESSORIES

AD0445-A00        Battery chronograph

AD0445-A01        Portable digital thermometer with Pt100 probe

CAL001                PT100 simulator

CAL002                Officially certified PT100 simulator

CONSUMABLES

TAO46C-N00      ASTM 46C thermometer (+48.6°C/+51.4°C)

TA120C-N00       ASTM 120C thermometer (+38.6°C/+41.4°C)

TA121C-N00       ASTM 121C thermometer (+98.6°C/+101.4°C)

AD0445-C00        Cannon-Fenske capillary support

AD0445-C01        Ubbelohde capillary support
