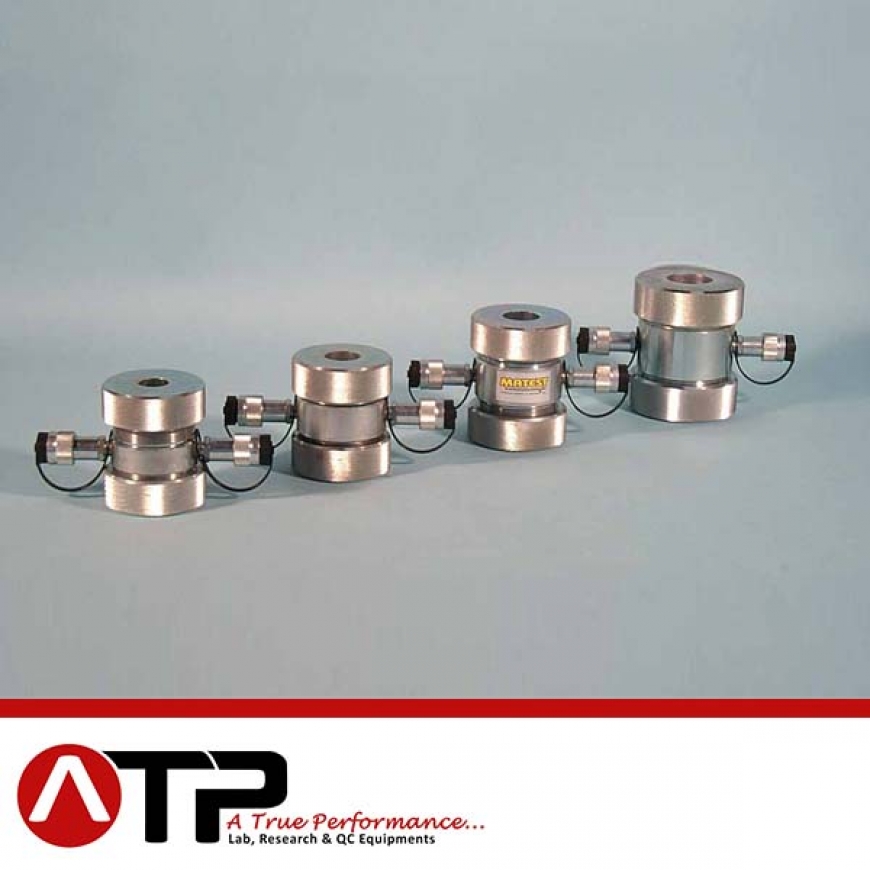

Hoek Cell

DIA. 38.1 X 75 MM

DIA. 42.04 X 85 MM

DIA. 54.74 X 100 MM

For use with pressures up to 70 MPa.
Used to measure the strength of cylindrical rock specimens which are subjected to triaxial compression.
The basic Hoek cell consists of the following: cell body complete with two screwed end caps and two self-sealing couplings, two spherical seats and pistons, hardened and ground, one specimen jacket.

NOTE: The load spreaders A136-01 are used to avoid the cell’s pistons engrave the platens of the compression machine. One set of extruder adaptors is formed by back plate, tamper and cell body support.
