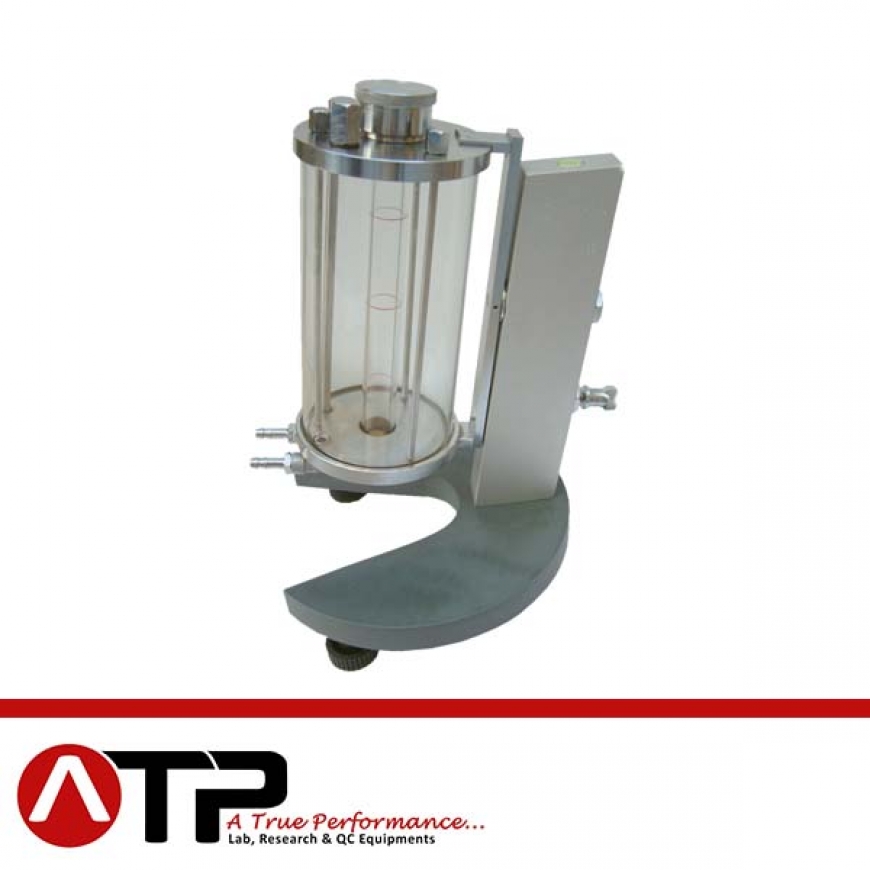

Hoppler Viscometer

For determining the dynamic viscosity of Newtonian liquids using the Hoppler falling-ball viscometer, including a method of calibrating the viscometer

Suitable for viscosity 0.5 a 100.000 mPa*s (cP). Mounted on support with levelling screws and bubble level, fitted with stop pin which allows the viscometer to reverse. Calibrated fall tube tube with two maximum level notches and an intermediatelevel one, equipped with 6 gauged balls: 1+2=borosilicate glass, 3+4=Ni-Fe, 5+6=steel. Pyrex glass jacket for thermostatic bath with covers, neoprene gaskets, connections for the circulation of the thermostated liquid from the thermostatic bath. With certificate at 20°C.

– Temperature: from -20 to +120°C (-4 to 248°F)(with external unit)
– Power supply:220V 50/60Hz (for 330)
– Power: 110W (for 330)
