| Model |
HS120 , HS150 , HS180 , HS330 |
|---|

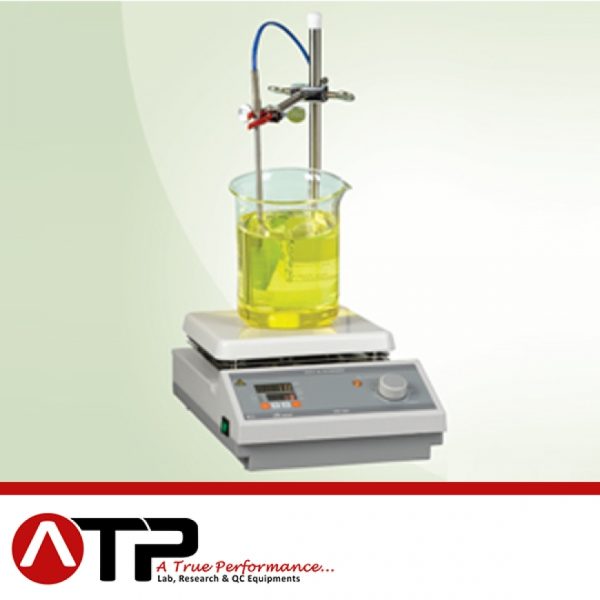

Hotplates & stirrers
Accurate temperature control by PID auto-tuning function, built-in timer (99hr 59min)
Uniform heat distribution on the heating plate
max. temperature 380℃
max. temperature 350℃ (HS330)
Various sizes of the top plate and flexible choice
Speed display by scale (rpm)
Electronic feedback control maintains a precise speed
Max speed 1500rpm
|
Model |
HS120 |
HS150 |
HS180 |
HS330 |
|
|
Type |
Hot plate & Magnetic Stirrer |
||||
|
Temperature |
Range |
Max 380℃ |
Max 350℃ |
||
|
Accuracy |
±1℃ |
||||
|
Controller |
Digital PID auto-tuning |
||||
|
Timer |
99hr 59min |
||||
|
Heater power |
350W |
480W |
680W |
1400W |
|
|
Stirring |
Speed |
100~1500rpm |
100~1300rpm |
||
|
Speed display |
Scale(rpm) |
||||
|
Capacity(H2O) |
up to 1L |
up to 2L |
up to 5L |
up to 15L |
|
|
Speed Controllerer |
Feedback control |
||||
|
Top Plate |
Ceramic coated top plate |
||||
|
Dimensions |
Plate area(mm) |
120×120 |
150×150 |
180×180 |
300×300 |
|
Overall(W×D×H)(mm) |
160×280×107 |
160×280×107 |
200×310×107 |
310×430×120 |
|
|
Electrical supply |
220V 50/60Hz or 110V 50/60Hz |
||||
|
Weight |
2.7Kg |
2.8Kg |
3.8Kg |
7Kg |
|
